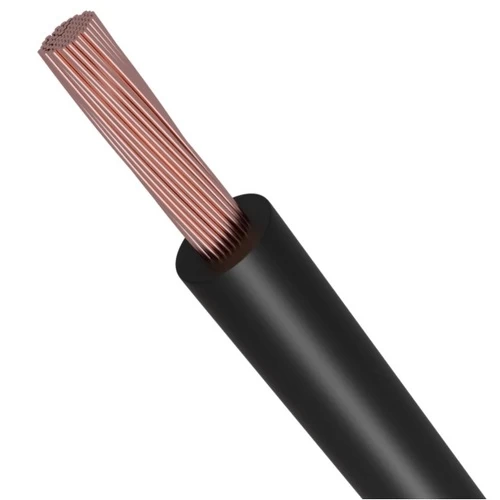

16 AWG Stranded Copper Electric Wire, 600V, PVC Insulated (+105°C) Black | Asharqiyah Cables

16 AWG Stranded Copper Electric Wire, 600V, PVC Insulated (+105°C) Black | Asharqiyah Cables

(377 Product Views)

YouMats

Stranded copper electrical american wire (AWM), rated for 600 Vac or 750 Vdc, 2500 feet Length, 16 AWG conductor size, manufactured by Asharqiyah Cables, Excellent conductor of electricity, reducing energy loss.

in stock
 Call Now
💳 general.accepted_payments
general.mada
general.master_card
general.visa
general.tamara

Product description

Stranded copper electrical american wire (AWM), manufactured by Asharqiyah Cables. Insulated with polyvinyl chloride (PVC +105°C), offering high resistance to heat, humidity, oils, and chemicals. Specifically designed for internal wiring in household and industrial electrical appliances such as air conditioners, automatic washing machines, refrigeration equipment, control cabinets, and other construction applications. Available in various colors and sizes with superior quality and competitive prices to suit diverse applications and needs.

  • Wire Type : American Wires AWM (Appliance Wiring Material)
  • Conductor : Stranded Copper
  • Insulation Material : (PVC +105°C) Heat Resistance
  • Voltage : Rated for 600 Vac or 750 Vdc
  • Conductor Size (Cross-sectional area) : 16 AWG
  • No. of Wires : 19
  •  Classification Standards : Class C of ASTM
  • Nominal Insulation Thickness : 1.14 mm
  • Approx Overall Diameter : 3.80 mm
  • Approx Weight : 30 kg/km
  • Insulation Color : Black
  • Standard Length : 2500 feet
  • Standards : UL STYLE 1028, UL 758, UL E505934
