500 mm Stranded Copper NYA Electric Wire, 1000V, PVC 90°C Insulated , Blue, 100 Yards | RESCAB
(224 Product Views)

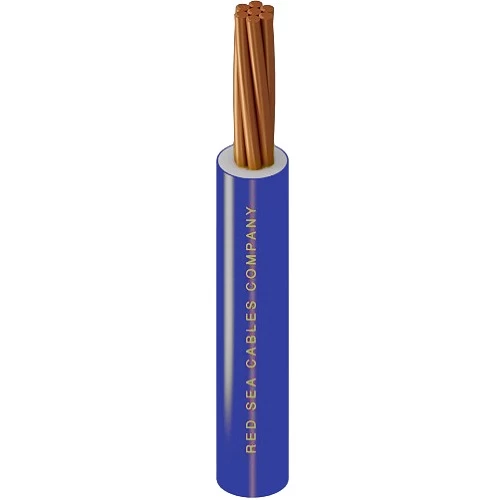

Stranded Copper Electric Wire (CU/PVC), size 500 mm², insulated with Polyvinyl Chloride (PVC) rated at 90°C, produced by Red Sea Cables Company, Suitable for use in fixed installations and building connections.
Product description
Stranded copper electric wire by Red Sea Cables according to International and British standards to ensure quality and safety, Insulated with polyvinyl chloride (PVC 90°C) where this insulation provides an excellent protective layer around the conductor, preventing electric current leakage, providing protection against shocks, abrasion, and corrosion. It also prevents harmful UV rays from damaging the wire and is highly resistant to water and moisture. Suitable for fixed installations and building wiring in conduits or ducts, where it can be used in lighting fixtures, switchgear, and internal connections of appliances and equipment. Available in various colors and sizes to cater to diverse applications and requirements, this cable offers superior quality and competitive pricing.
- Wire Type: H07V2-R
- Conductor: Stranded Copper
- Insulation Material: PVC 90°C
- Voltage: up to 1000Vac or upto 750Vdc
- Conductor Size (Cross-Sectional Area):500 mm2
- No of Wires: 61
- Nominal Insulation Thickness:2.8 mm
- Approx Overall Diameter: 33.9 mm
- Maximum DC Resistance at 20°C:0.0366 ohm/km
- Current Carrying Capacity (PVC 90°C):621 Ampere
- Standard Length: 100 Yards (91.4 meter) / Plastic Reels
- Insulation Color: Blue
- Standards: IEC 60227, SASO 1320, BS 6004
