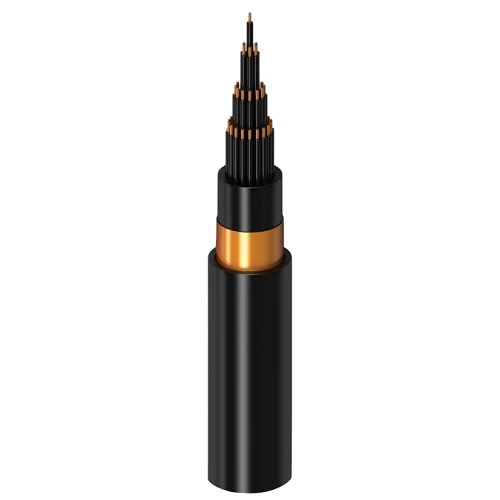

CU/XLPE/CTS/PVC Control Cable, Size 1.5 mm, 37 Core, 600/1000 volts | Alfanar

Product description

Stranded copper shielded control cable, (CU/XLPE/CTS/PVC), Manufactured by Al Fanar Company. Used for transmitting signals and information between devices and equipment in various control and operation systems in many fields, including communication systems, transportation systems, and industrial control systems. Shielded with Copper Tape (CTS) To create a shield that blocks unwanted electromagnetic waves, preserving signal quality and minimizing the risk of data loss or corruption. Insulated with XLPE (cross-linked polyethylene), where it is characterized by its ability to withstand high temperatures up to 90°C for extended periods without compromising performance. It also offers excellent resistance to moisture, corrosion, and chemicals, ensuring long-term safety of use. Additionally, sheathed in PVC (polyvinyl chloride) material, which provides extra protection for the cable against shocks, abrasion, corrosion, and prevents harmful UV rays from damaging the cable. This makes it suitable for both indoor and outdoor applications. Available in different shapes, sizes and conductor ratings to meet diverse application requirements.

• Conductor Type : Copper
• Conductor Shape : Round Stranded (rm)
• Insulation Material : XLPE (Cross-Linked Polyethylene)
• Bedding : PVC
• Shielding : Single Copper Tape (CTS)
• Outer Jacket : PVC (Polyvinyl Chloride)
• Voltage : 600/1000 volts
• Conductor Size (Cross-Sectional Area) : 1.5 mm2
• Number of Cores : 37
• Max DC Conductor Resistance at 20°C : 12.1000 ohm/km
• Max AC Conductor Resistance at 90°C : 15.4287 ohm/km
• Current Rating Laid in Ground : 9 Ampere
• Current Rating Laid in Ducts : 7 Ampere
• Current Rating Laid in Free Air : 9 Ampere
• Approx Overall Diameter : 28 mm
• Weight : 1110 kg/km
• Core Color : Black
• Standard : IEC 60502-1
