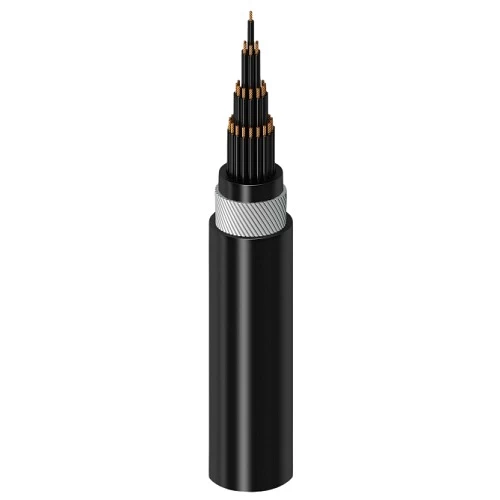

4×1.5 mm 0.6/1kV Control Cable, Stranded Copper XLPE Insulated, Armored with Steel Wires | Alfanar

Product description

Stranded copper armored control cable, (CU/XLPE/SWA/PVC), Manufactured by Al Fanar Company. Used for transmitting signals and information between devices and equipment in various control and operation systems in many fields, including communication systems, transportation systems, and industrial control systems. Armored with single layer of round galvanized steel wires (SWA) to give it mechanical strength to protect it from external pressures that fall on the cable. Insulated with XLPE (cross-linked polyethylene), where it is characterized by its ability to withstand high temperatures up to 90°C for extended periods without compromising performance. It also offers excellent resistance to moisture, corrosion, and chemicals, ensuring long-term safety of use. Additionally, sheathed in PVC (polyvinyl chloride) material, which provides extra protection for the cable against shocks, abrasion, corrosion, and prevents harmful UV rays from damaging the cable. This makes it suitable for both indoor and outdoor applications where there is a risk of mechanical damage. Available in different shapes, sizes and conductor ratings to meet diverse application requirements.

• Conductor Type : Copper
• Conductor Shape : Round Stranded (rm)
• Insulation Material : XLPE (Cross-Linked Polyethylene)
• Bedding : PVC
• Armouring : Single Layer of Round Galvanized Steel Wires (SWA)
• Outer Jacket : PVC (Polyvinyl Chloride)
• Voltage : 600/1000 volts
• Conductor Size (Cross-Sectional Area) : 1.5 mm2
• Number of Cores : 4
• Max DC Conductor Resistance at 20°C : 12.1000 ohm/km
• Max AC Conductor Resistance at 90°C : 15.4287 ohm/km
• Current Rating Laid in Ground : 27 Ampere
• Current Rating Laid in Ducts : 19 Ampere
• Current Rating Laid in Free Air : 24 Ampere
• Approx Overall Diameter : 14.4 mm
• Weight : 410 kg/km
• Core Color : Black
• Standard : IEC 60502-1
