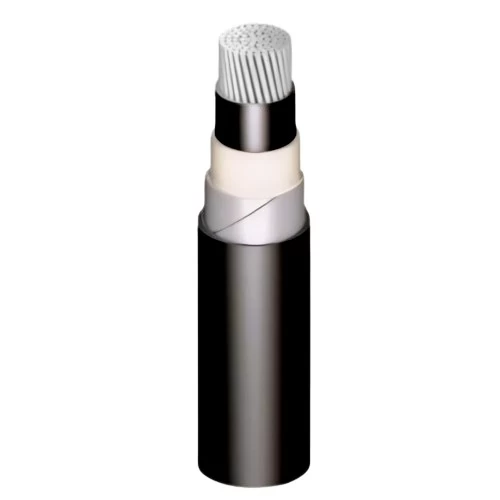

Aluminum Electrical Cable 1x500 mm 0.6/1kV, ATA Armed, LSHF Sheath | Riyadh Cables

Armored aluminum power cable (AL/XLPE/ATA/LSHF), Produced by Riyadh Cables Company, Armored with layer of aluminum tape (ATA) to give it mechanical strength to protect it from external pressures that fall on the cable, Insulated with XLPE (cross-linked polyethylene), which provides a unique combination of strength, flexibility and reliability making them suitable for a diverse range of applications, It can withstand high temperatures up to 90°C for extended periods without compromising performance. The cable also withstands harsh environmental conditions, including moisture, corrosion and chemicals, making it ideal for outdoor use, Chloride-free, making it environmentally friendly. Also, it is sheathed with an outer layer of a low smoke halogen-free compound (LSHF), minimizes smoke and toxic fumes in case of fire, enhancing safety in sensitive environments like hospitals, data centers, and public buildings. Available in various shapes and sizes in highest quality and best prices to suit different applications and needs.

• Conductor Type: Aluminum
• Insulation Material: XLPE (Cross-Linked Polyethylene)
• Outer Sheath: LSHF (Low Smoke Halogen Free)
• Voltage: 600/1000 volts
• Conductor Shape: Stranded (rm)
• Number of Cores: Single Core
• Conductor Size (Cross-Sectional Area): 500 mm2
• Number of wires: 61
• Approx Conductor Diameter: 28.6 mm
• Nominal Insulation Thickness: 2.2 mm
• Armoring: ATA (Aluminum Tape Armor)
• Nominal Aluminum Tape Thickness: 5.0 mm
• Nominal Sheath Thickness: 2.1 mm
• Approx Overall Diameter: 42 mm
• Weight: 2400 kg/km
• Length: 500 meters
• Phase Core Color: (Black)
• Standard: IEC 60502-1
