3.5 Core 240 sq mm Aluminum Cable 0.6/1kV, STA Armed, LSHF Sheath | Riyadh Cables

Product description

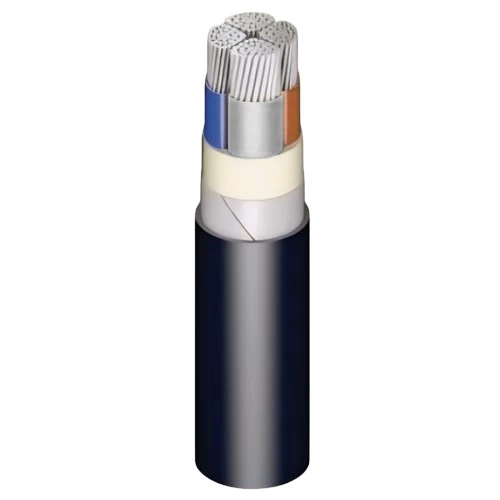

Aluminum armored power cable (AL/XLPE/STA/LSHF). 3.5 core stranded, Produced by Riyadh Cables Company. according to IEC 60502-1 (International Electrotechnical Commission) standard. Armored with double steel tape (STA) to give it mechanical strength to protect it from external pressures that fall on the cable. Also insulated with XLPE (cross-linked polyethylene) which provides a unique combination of strength, flexibility and reliability making them suitable for a diverse range of applications. It can withstand high temperatures up to 90°C for extended periods without compromising performance. The cable also withstands harsh environmental conditions, including moisture, corrosion and chemicals, making it ideal for outdoor use. Chloride-free, making it environmentally friendly. Also, it is sheathed with an outer layer of a low smoke halogen-free compound (LSHF), minimizes smoke and toxic fumes in case of fire, enhancing safety in sensitive environments like hospitals, data centers, and public buildings. Available in various shapes and sizes in highest quality and best prices to suit different applications and needs.

• Conductor Type: Aluminum
• Insulation Material: XLPE (Cross-Linked Polyethylene)
• Outer Sheath: LSHF (Low Smoke Halogen Free)
• Voltage : 600/1000 volts
• Phase Conductor Shape: Sectoral Stranded (sm)
• Neutral Conductor Shape: Round Stranded (rm)
• Number of Cores: 3.5 (3 Core + Neutral Line)
• Conductor Size (Cross-Sectional Area): ( 3c×240 mm2 ) + 120 mm2
• Number of Phase Wires: 30
• Number of Neutral Wires: 37
• Approx Diameter of Neutral Conductor: 14 mm
• Nominal Insulation Thickness of Phase: 1.7 mm
• Nominal Insulation Thickness of Neutral: 1.2 mm
• Armoring: STA (Steel Tape Armor)
• Nominal Steel Wire Diameter: 0.5 mm
• Nominal Sheath Thickness: 2.8 mm
• Approx Overall Diameter: 58 mm
• Weight: 4725 kg/km
• Length : 250 meters
• Phase Core Colors: (blue, brown, black, grey)
• Standard: IEC 60502-1
