Riyadh Cable Stranded Copper 3x500+240 mm, 0.6/1 kV, STA Armed, XLPE Insulated, LSHF sheath
(658 Product Views)

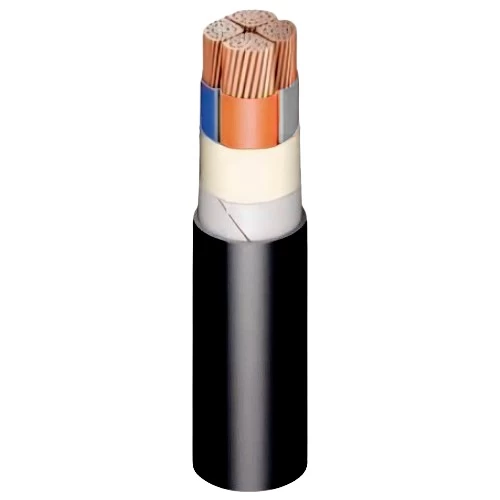

Low smoke halogen free armored power cable (CU/XLPE/STA/LS0H), 3.5 core stranded copper conductor, Available in different shapes and sizes, the insulator prevents the leakage of electricity or current around it and provides protection. It is a good conductor of electricity, produced by Riyadh Cables Company, Size 3×500+240mm2.
Product description
Low smoke halogen free armored power cable (CU/XLPE/STA/LS0H), 3.5 core stranded copper conductor, Produced by Riyadh Cables Company. according to IEC 60502-1 standard. Armored with layer of double steel tape (STA) to give it mechanical strength to protect it from external pressures that fall on the cable. Insulated with XLPE (cross-linked polyethylene) which provides a unique combination of strength, flexibility and reliability making them suitable for a diverse range of applications. It can withstand high temperatures up to 90°C for extended periods without compromising performance. The cable also withstands harsh environmental conditions, including moisture, corrosion and chemicals, chloride-free, making it environmentally friendly. Also, it is sheathed with an outer layer of low smoke halogen-free compound (LSHF), non-toxic and environmentally friendly as it does not contain halogens and does not produce dense smoke or harmful fumes in case of fire. Making it ideal for use in public buildings, industrial areas, infrastructure projects, and densely populated areas where fire and smoke emissions pose a potential threat to equipment and life. It generally works to reduce the risks caused by the after-effects of electrical fire. Available in various shapes and sizes in highest quality and best prices to suit different applications and needs.
- Insulation Material: XLPE (Cross-Linked Polyethylene)
- Outer Sheath: LSHF (Low Smoke Halogen Free)
- Voltage : 600/1000 volts
- Phase Conductor Shape: Sectoral Stranded (sm)
- Neutral Conductor Shape: Round Stranded (rm)
- Number of Cores: 3.5 (3 Core + Neutral Line)
- Conductor Size (Cross-Sectional Area): ( 3cx500 mm2 ) + 240mm2
- Number of Phase Wires: 53
- Number of Neutral Wires: 61
- Approx Diameter of Neutral Conductor: 20 mm
- Nominal Insulation Thickness of Phase: 2.2 mm
- Nominal Insulation Thickness of Neutral: 1.7 mm
- Armoring: STA (Steel Tape Armor)
- Nominal Steel Tape Thickness: 0.5 mm
- Nominal Sheath Thickness: 3.5 mm
- Approx Overall Diameter: 78 mm
- Weight: 19275 kg/km
- Length : 250 meters
- Phase Core Colors: (blue, brown, black, grey)
- Standard: IEC 60502-1
