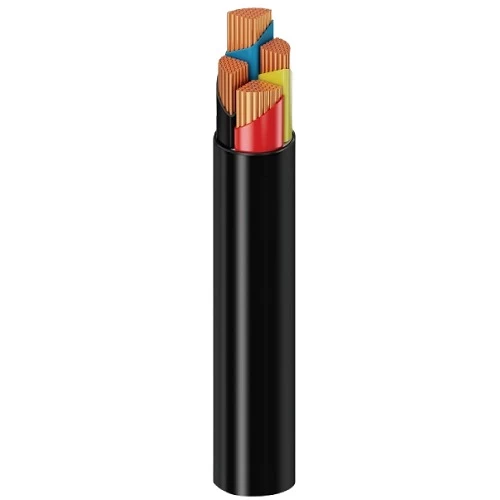

3x35+16 sq mm 600/1000V Power Cable, Copper Wire XLPE Insulation, LS0H Sheath | Produced by Alfanar

Product description

3.5 core stranded copper electrical cable(CU/XLPE/LSHF), produced by Alfanar Cables Company, provides a unique combination of strength, flexibility, and reliability, making it suitable for a diverse range of applications. It can withstand high temperatures up to 90°C for extended periods without compromising performance. The cable also resists harsh environmental conditions, including moisture, corrosion, and chemicals, making it ideal for outdoor use. Being chloride-free, it is environmentally friendly. Additionally, the cable is sheathed with an outer layer of a low smoke halogen-free compound (LSHF), minimizing smoke and toxic fumes in case of fire. Therefore, it is suitable for use in fixed installations and areas where smoke and acid gas emissions could pose a hazard to personnel or sensitive equipment, such as schools, hospitals, hotels, shopping centers, subways, etc. This cable is available in various shapes and sizes of the highest quality and best prices to suit different applications and needs.

• Conductor Type: Copper
• Conductor Shape: Stranded
• Insulation Material: XLPE (Cross-Linked Polyethylene)
• Outer Jacket: LSHF (Low Smoke Halogen Free)
• Voltage: 600/1000 volts
• Number of Cores: 3.5
• Conductor Size (Cross-Sectional Area): 35 mm²
• Nominal Insulation Thickness: 0.5240 mm
• Nominal Sheath Thickness: 1.1500 mm
• Approx Overall Diameter: 1.4667 mm
• Weight: 1325 kg/km
• Max DC Conductor Resistance at 20°C: 0.6688 ohm/km
• Current Rating Laid in Ground: 105 Ampere
• Current Rating Laid in Ducts: 141 Ampere
• Current Rating Laid in Free Air: 23.0 Ampere
• Color: (Red, Yellow, Blue, Black)
• Standard: IEC 60502-1
