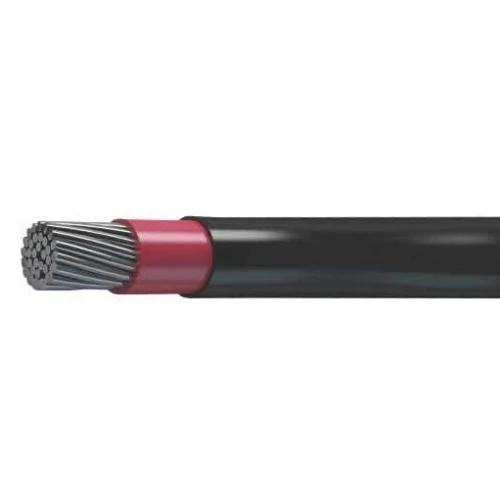

Jeddah Aluminium Cable 16mm Single Core, 0.6/1kV, XLPE Insulated, PVC Sheathed

Product description

Single core stranded Aluminium cable (AL/XLPE/PVC), Produced by Jeddah Company, according to the International Electrotechnical Commission standard (IEC 60502-1). Insulated with XLPE (cross-linked polyethylene), which offers an exceptional combination of properties that make it the ideal choice for a wide range of power and energy transmission applications due to its excellent electrical, thermal, and mechanical properties, where it is characterized by its ability to withstand high temperatures  up to 90°C for extended periods without compromising performance. It also offers excellent resistance to moisture, corrosion, and chemicals, ensuring long-term safety of use. Additionally, sheathed in PVC (polyvinyl chloride) material, which provides extra protection for the cable against shocks, abrasion, corrosion, and prevents harmful UV rays from damaging the cable. This makes it suitable for both indoor and outdoor applications. Available in different shapes, sizes and conductor ratings to meet diverse application requirements.

• Conductor Type: Aluminium
• Insulation Material: XLPE (Cross-Linked Polyethylene)
• Outer Jacket: PVC
• Voltage: 600/1000 volts
• Conductor Shape: Round Stranded (rm)
• Number of Cores: Single Core
• Conductor Size (Cross-Sectional Area): 16 mm2
• Nominal Insulation Thickness: 0.7 mm
• Nominal Sheath Thickness: 1.4 mm
• Approx Overall Diameter: 9.21  mm
• Weight: 115 kg/km
• Max DC Conductor Resistance at 20°C: 1.9100 ohm/km
• Current Rating Laid in Ground (Flat Touched): 97 Ampere
• Current Rating Laid in Ground (Trefoil): 95 Ampere
• Current Rating Laid in Ground (Inside Ducts): 72 Ampere
• Current Rating Laid in Free Air (Flat Spaced): 99 Ampere
• Current Rating Laid in Free Air (Flat Touched): 94 Ampere
• Current Rating Laid  Free Air (Trefoil): 70 Ampere
• Phase Core Color: Red
• Standard: IEC 60502-1
