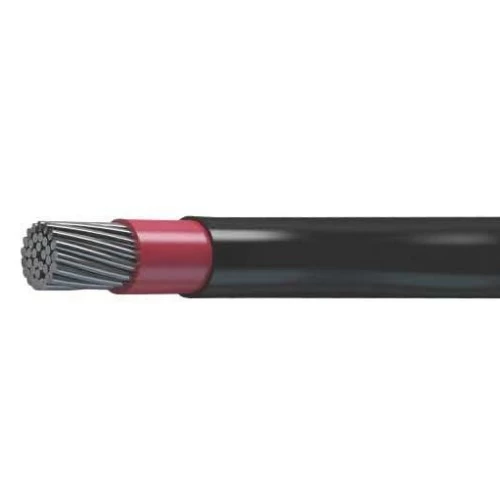

Jeddah Aluminium Cable 50mm Single Core, 0.6/1kV, XLPE Insulated, PVC Sheathed

Product description

Single core stranded Aluminium cable (AL/XLPE/PVC), Produced by Jeddah Company, according to the International Electrotechnical Commission standard (IEC 60502-1). Insulated with XLPE (cross-linked polyethylene), which offers an exceptional combination of properties that make it the ideal choice for a wide range of power and energy transmission applications due to its excellent electrical, thermal, and mechanical properties, where it is characterized by its ability to withstand high temperatures  up to 90°C for extended periods without compromising performance. It also offers excellent resistance to moisture, corrosion, and chemicals, ensuring long-term safety of use. Additionally, sheathed in PVC (polyvinyl chloride) material, which provides extra protection for the cable against shocks, abrasion, corrosion, and prevents harmful UV rays from damaging the cable. This makes it suitable for both indoor and outdoor applications. Available in different shapes, sizes and conductor ratings to meet diverse application requirements.

• Conductor Type: Aluminium
• Insulation Material: XLPE (Cross-Linked Polyethylene)
• Outer Jacket: PVC
• Voltage: 600/1000 volts
• Conductor Shape: Round Stranded (rm)
• Number of Cores: Single Core
• Conductor Size (Cross-Sectional Area): 50 mm2
• Nominal Insulation Thickness: 1 mm
• Nominal Sheath Thickness: 1.4 mm
• Approx Overall Diameter: 13 mm
• Weight: 260 kg/km
• Max DC Conductor Resistance at 20°C: 0.6410 ohm/km
• Current Rating Laid in Ground (Flat Touched): 177 Ampere
• Current Rating Laid in Ground (Trefoil): 169 Ampere
• Current Rating Laid in Ground (Inside Ducts): 131 Ampere
• Current Rating Laid in Free Air (Flat Spaced): 193 Ampere
• Current Rating Laid in Free Air (Flat Touched): 187 Ampere
• Current Rating Laid  Free Air (Trefoil): 164 Ampere
• Phase Core Color: Red
• Standard: IEC 60502-1
