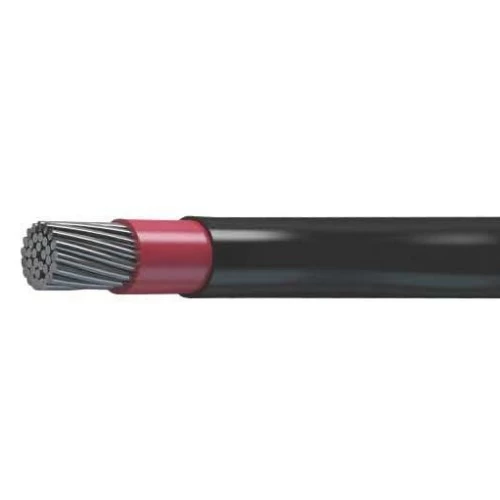

Jeddah Single Core 185mm 0.6/1kV Aluminum Power Cable, XLPE Insulated

Product description

Single core stranded Aluminium cable (AL/XLPE/PVC), Produced by Jeddah Company, according to the International Electrotechnical Commission standard (IEC 60502-1). Insulated with XLPE (cross-linked polyethylene), which offers an exceptional combination of properties that make it the ideal choice for a wide range of power and energy transmission applications due to its excellent electrical, thermal, and mechanical properties, where it is characterized by its ability to withstand high temperatures  up to 90°C for extended periods without compromising performance. It also offers excellent resistance to moisture, corrosion, and chemicals, ensuring long-term safety of use. Additionally, sheathed in PVC (polyvinyl chloride) material, which provides extra protection for the cable against shocks, abrasion, corrosion, and prevents harmful UV rays from damaging the cable. This makes it suitable for both indoor and outdoor applications. Available in different shapes, sizes and conductor ratings to meet diverse application requirements.

• Conductor Type: Aluminium
• Insulation Material: XLPE (Cross-Linked Polyethylene)
• Outer Jacket: PVC
• Voltage: 600/1000 volts
• Conductor Shape: Round Stranded (rm)
• Number of Cores: Single Core
• Conductor Size (Cross-Sectional Area): 185 mm2
• Nominal Insulation Thickness: 1.6 mm
• Nominal Sheath Thickness: 1.6 mm
• Approx Overall Diameter: 24.2 mm
• Weight: 830 kg/km
• Max DC Conductor Resistance at 20°C: 0.1840 ohm/km
• Current Rating Laid in Ground (Flat Touched): 382 Ampere
• Current Rating Laid in Ground (Trefoil): 385 Ampere
• Current Rating Laid in Ground (Inside Ducts): 291 Ampere
• Current Rating Laid in Free Air (Flat Spaced): 485 Ampere
• Current Rating Laid in Free Air (Flat Touched): 468 Ampere
• Current Rating Laid  Free Air (Trefoil): 374 Ampere
• Phase Core Color: Red
• Standard: IEC 60502-1
