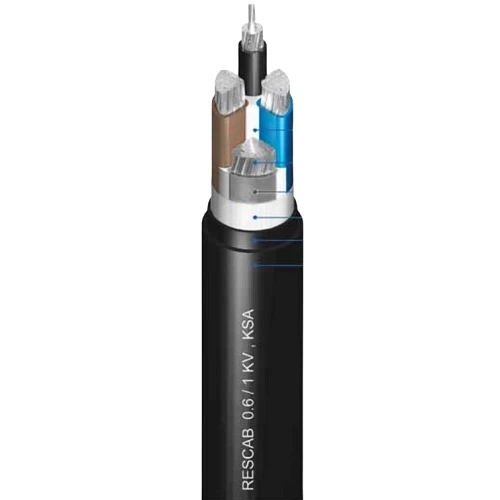

3x25 + 16mm 0.6/1kV 3.5C Electric Cable, Stranded Aluminum Conductor , XLPE Insulation, PVC Sheath, Length 1000 meter | RESCAB

Product description

Stranded aluminum power cable (AL/XLPE/PVC), produced by Red Sea Cables (RESCAB) Company. Insulated with XLPE (cross-linked polyethylene), which offers an exceptional combination of properties that make it the ideal choice for a wide range of power and energy transmission applications due to its excellent electrical, thermal, and mechanical properties, where it is characterized by its ability to withstand high temperatures up to 90°C for extended periods without compromising performance. It also offers excellent resistance to moisture, corrosion, and chemicals, ensuring long-term safety of use. Additionally, sheathed with PVC (polyvinyl chloride) material, which provides extra protection for the cable against shocks, abrasion, corrosion, and prevents harmful UV rays from damaging the cable. This makes it suitable for both indoor and outdoor applications. Available in different shapes, sizes and conductor ratings to meet diverse application requirements.

• Conductor: Stranded Aluminum
• Insulation Material: XLPE (Cross-Linked Polyethylene)
• Outer Sheath: PVC
• Voltage: 0.6/1kV
• Number of Cores: 3.5 Core (3 Core + Neutral Line)
• Conductor Size (Cross-Sectional Area): ( 3cx25 mm2 ) + 16mm2
• Number of Phase Wires: 7
• Number of Neutral Wires: 7
• Nominal Insulation Thickness of Phase: 0.9  mm
• Nominal Insulation Thickness of Neutral: 0.7  mm
• Nominal Sheath Thickness: 1.8 mm
• Approx Overall Diameter: 26 mm
• Max DC Conductor Resistance at 20°C (Ph): 1.20 ohm/km
• Max DC Conductor Resistance at 20°C (Ne): 1.91 ohm/km
• Weight: 750 kg/km
• Standard Length : 1000 meters
• Phase Core Colors: (Blue, Brown, Black, Grey)
• Standard:  BS 5467, 6346 Latest
