3x25 sq mm Stranded Aluminium Cable, Steel Tape Armored, 0.6/1kV, XLPE Insulated | Alfanar

Product description

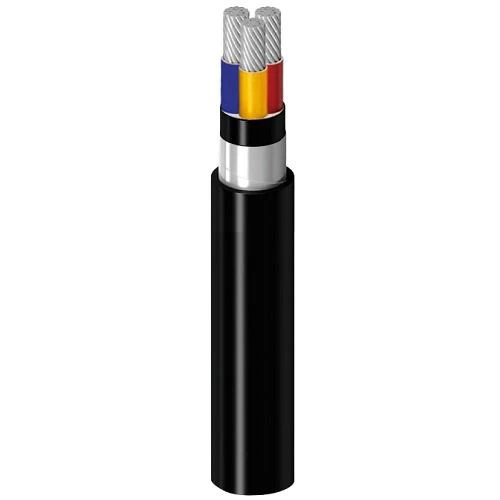

Three core stranded aluminium armored cable (AL/XLPE/STA/PVC), Produced by Alfanar Company, Armored with double layers of galvanized steel tapes (STA) to give it mechanical strength to protect it from external pressures that fall on the cable. Insulated with XLPE (cross-linked polyethylene), which offers an exceptional combination of properties that make it the ideal choice for a wide range of power and energy transmission applications due to its excellent electrical, thermal, and mechanical properties, where it is characterized by its ability to withstand high temperatures  up to 90°C for extended periods without compromising performance. It also offers excellent resistance to moisture, corrosion, and chemicals, ensuring long-term safety of use. Additionally, sheathed in PVC (polyvinyl chloride) material, which provides extra protection for the cable against shocks, abrasion, corrosion, and prevents harmful UV rays from damaging the cable. This makes it suitable for both indoor and outdoor applications where there is a risk of mechanical damage. Available in different shapes, sizes and conductor ratings to meet diverse application requirements.

• Conductor Type: Aluminium
• Insulation Material: XLPE (Cross-Linked Polyethylene)
• Armouring: Double Layers of Galvanized Steel Tapes (STA)
• Outer Jacket: PVC
• Voltage: 600/1000 volts
• Conductor Shape: Round Stranded (rm)
• Number of Cores: 3
• Conductor Size (Cross-Sectional Area): 25 mm2
• Max DC Conductor Resistance at 20°C: 1.2000 ohm/km
• Max AC Conductor Resistance at 90°C: 1.5388 ohm/km
• Current Rating Laid in Ground: 95 Ampere
• Current Rating Laid in Ducts: 72 Ampere
• Current Rating Laid in Free Air: 97 Ampere
• Approx Overall Diameter: 22.8 mm
• Weight: 700 kg/km
• Phase Core Colors: (Red, Yellow, Blue)
• Standard: IEC 60502-1
