3.5 Core 25 sq mm Stranded Aluminum Cable 0.6/1kV, SWA Armed, XLPE Insulated | Riyadh Cables
(619 Product Views)

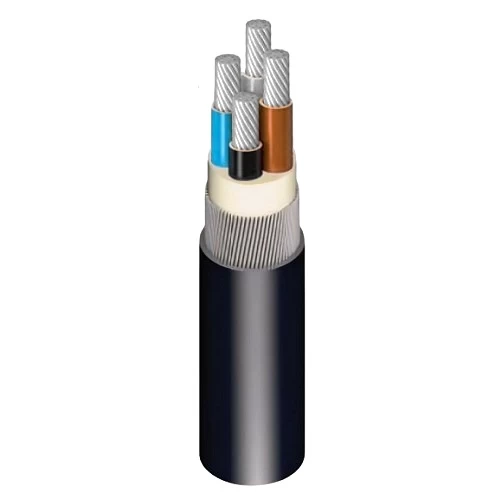

Aluminum armored power cable (AL/XLPE/SWA/PVC), 3.5 core stranded, The cable withstands harsh environmental conditions, with a high-quality PVC (polyvinyl chloride) outer layer, produced by Riyadh Cables Company, Size 3x25+16mm.
Product description
Aluminum armored power cable (AL/XLPE/SWA/PVC), 3.5 core stranded, Produced by Riyadh Cables Company. according to IEC 60502-1 (International Electrotechnical Commission) standard. Armored with layer of steel wires (SWA) to give it mechanical strength to protect it from external pressures that fall on the cable. Insulated with XLPE (cross-linked polyethylene) which provides a unique combination of strength, flexibility and reliability making them suitable for a diverse range of applications. It can withstand high temperatures up to 90°C for extended periods without compromising performance. The cable also withstands harsh environmental conditions, including moisture, corrosion and chemicals, making it ideal for outdoor use. It is also jacketed with a high-quality PVC (polyvinyl chloride) outer sheath that provides additional protection against corrosion and mechanical damage. XLPE cable is commonly used extensively in power transmission and distribution systems in homes, buildings, offices and industrial applications where there is a risk of mechanical damage. Available in different shapes, sizes and conductor ratings to meet diverse application requirements.
- Conductor Type: Aluminum
- Insulation Material: XLPE (Cross-Linked Polyethylene)
- Outer Sheath: PVC (Polyvinyl Chloride)
- Voltage : 600/1000 volts
- Phase Conductor Shape: Round Stranded (rm)
- Neutral Conductor Shape: Round Stranded (rm)
- Number of Cores: 3.5 (3 Core + Neutral Line)
- Conductor Size (Cross-Sectional Area): ( 3c×25 mm2 ) + 16 mm2
- Number of Phase Wires: 7
- Number of Neutral Wires: 7
- Approx Diameter of Phase Conductor: 6.3 mm
- Approx Diameter of Neutral Conductor: 4.98 mm
- Nominal Insulation Thickness of Phase: 0.9 mm
- Nominal Insulation Thickness of Neutral: 0.7 mm
- Armoring: SWA (Steel Wire Armor)
- Nominal Steel Wire Diameter: 1.6 mm
- Nominal Sheath Thickness: 1.8 mm
- Approx Overall Diameter: 28 mm
- Weight: 1475 kg/km
- Length : 1000 meters
- Phase Core Colors: (blue, brown, black, grey)
- Standard: IEC 60502-1
