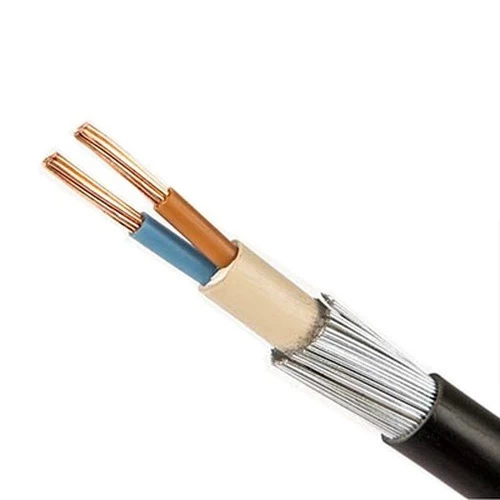

185mm 2 Core 600/1000V Alfanar Copper Cable, SWA Armored, XLPE Insulated

Product description

Stranded copper armored cable (CU/XLPE/SWA/PVC), produced by Alfanar Company according to the International Electrotechnical Commission standard (IEC 60502-1). Armored with single layer of round galvanized steel wires (SWA) to give it mechanical strength to protect it from external pressures that fall on the cable. Insulated with XLPE (cross-linked polyethylene), which offers an exceptional combination of properties that make it the ideal choice for a wide range of power and energy transmission applications due to its excellent electrical, thermal, and mechanical properties, where it is characterized by its ability to withstand high temperatures  up to 90°C for extended periods without compromising performance. It also offers excellent resistance to moisture, corrosion, and chemicals, ensuring long-term safety of use. Additionally, sheathed in PVC (polyvinyl chloride) material, which provides extra protection for the cable against shocks, abrasion, corrosion, and prevents harmful UV rays from damaging the cable. This makes it suitable for both indoor and outdoor applications where there is a risk of mechanical damage. Available in different shapes, sizes and conductor ratings to meet diverse application requirements.

• Conductor Type: Copper
• Insulation Material: Cross-Linked Polyethylene (XLPE)
• Bedding: Extruded Layer of Polyvinyl Chloride (PVC)
• Armouring: Single Layer of Round Galvanized Steel Wires (SWA)
• Outer Jacket: Polyvinyl Chloride (PVC)
• Voltage: 600/1000 volts
• Conductor Shape: Sector Shaped (sm)
• Number of Cores: 2
• Conductor Size (Cross-Sectional Area): 185 mm2
• Max DC Conductor Resistance at 20°C: 0.0991 ohm/km
• Max AC Conductor Resistance at 90°C: 0.1302 ohm/km
• Current Rating Laid in Ground: 424 Ampere
• Current Rating Laid in Ducts: 349 Ampere
• Current Rating Laid in Free Air: 489 Ampere
• Approx Overall Diameter: 45.9 mm
• Weight: 6060 kg/km
• Phase Core Colors: (Brown, Blue)
• Standard: IEC 60502-1
