300mm 4 Core 0.6/1kV Stranded Copper Cable, SWA Armed, XLPE Insulation, PVC Sheath, 250 m | Red Sea Cables
(52 Product Views)

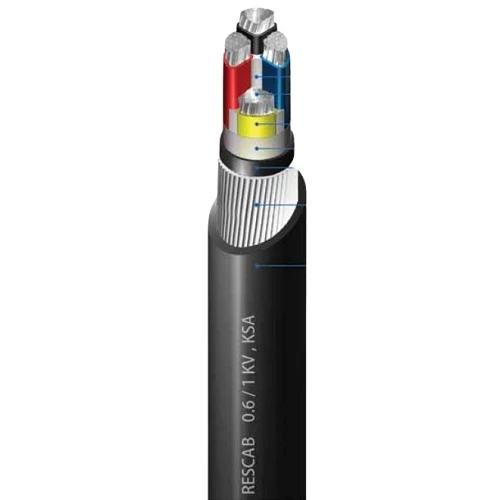

Armoured stranded copper power cable (CU/XLPE/SWA/PVC), four core, 300mm2 size conductor, 0.6/1kV, Produced by Red Sea Cables (RESCAB) . The PVC sheath protects the cable against moisture and corrosion caused by environmental factors, ensuring continuous performance in damp areas such as water treatment plants or coastal regions.
Product description
Armoured stranded copper power cable (CU/XLPE/SWA/PVC), four core, Produced by Red Sea Cables (RESCAB) Company. Armored with layer of galvanized steel wires (SWA) to give it mechanical strength to protect it from external pressures that fall on the cable. Insulated with XLPE (cross-linked polyethylene), which offers an exceptional combination of properties that make it the ideal choice for a wide range of power and energy transmission applications due to its excellent electrical, thermal, and mechanical properties, where it is characterized by its ability to withstand high temperatures up to 90°C for extended periods without compromising performance. It also offers excellent resistance to moisture, corrosion, and chemicals, ensuring long-term safety of use. Additionally, sheathed with PVC (polyvinyl chloride) material, which provides extra protection for the cable against shocks, abrasion, corrosion, and prevents harmful UV rays from damaging the cable. This makes it suitable for both indoor and outdoor applications where there is a risk of mechanical damage. Available in different shapes, sizes and conductor ratings to meet diverse application requirements.
- Conductor: Stranded Copper
- Insulation Material: PVC (Polyvinyl Chloride)
- Armoring: Galvanized Steel Wires (SWA)
- Outer Sheath: PVC
- Voltage: 0.6/1kV
- Number of Cores: 4
- Conductor Size (Cross-Sectional Area): 300 mm²
- Number of Wires: 61
- Nominal Insulation Thickness: 1.8 mm
- Nominal Steel Wire Diameter: 2.5 mm
- Nominal Sheath Thickness: 3.0 mm
- Approx Overall Diameter: 70 mm
- Max DC Conductor Resistance at 20°C: 0.0601 ohm/km
- Weight: 15920 kg/km
- Standard Length: 250 meters
- Phase Core Color: Red, Yellow, Blue, Black
- Standard: IEC 60502-1
