CU/XLPE/SWA/PVC Armored Power Cable, Solid Copper 2×6mm, 0.6/1kV | Riyadh Cables
(311 Product Views)

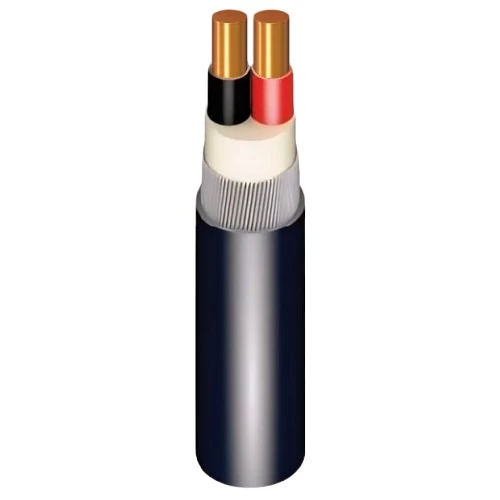

Two core armored electrical cable (CU/XLPE/SWA/PVC), solid copper conductor, Conductor diameter 2.76mm, XLPE cable is commonly used widely in power transmission and distribution systems in homes, buildings, offices and industrial applications, produced by Riyadh Cables Company, Size 6 mm2.
Product description
Two core armored electrical cable (CU/XLPE/SWA/PVC), solid copper conductor, Produced by Riyadh Cables Company. according to IEC 60502-1(International Electrotechnical Commission) standard. Armored with layer of steel wires (SWA) to give it mechanical strength to protect it from external pressures that fall on the cable. Also insulated with XLPE (cross-linked polyethylene) which provides a unique combination of strength, flexibility and reliability making them suitable for a diverse range of applications. It can withstand high temperatures up to 90°C for extended periods without compromising performance. The cable also withstands harsh environmental conditions, including moisture, corrosion and chemicals, making it ideal for outdoor use. It is also sheathed with a high-quality PVC (polyvinyl chloride) that provides additional protection against corrosion and mechanical damage. XLPE cable is commonly used extensively in power transmission and distribution systems in homes, buildings, offices and industrial applications. Available in different shapes, sizes and conductor ratings to meet diverse application requirements.
- Insulation Material: XLPE (Cross-Linked Polyethylene)
- Outer Sheath: PVC (Polyvinyl Chloride)
- Voltage : 600/1000 volts
- Conductor Shape: Solid (re)
- Number of Cores: 2 Core
- Conductor Size (Cross-Sectional Area): 6 mm2
- Number of Wires: 1
- Approx Conductor Diameter: 2.76 mm
- Nominal Insulation Thickness: 0.7 mm
- Armoring: SWA (Steel Wire Armor)
- Nominal Steel Wire Diameter: 0.8 mm
- Nominal Sheath Thickness: 1.8 mm
- Approx Overall Diameter: 16 mm
- Weight: 525 kg/km
- Length : 1000 meters
- Phase Core Colors: (Red, Black)
- Standard: IEC 60502-1
