Stranded Copper Cable 4x25+16mm 0.6/1kV, XLPE Insulated, SWA Armoured, 1000 m Length | BAHRA
(42 Product Views)

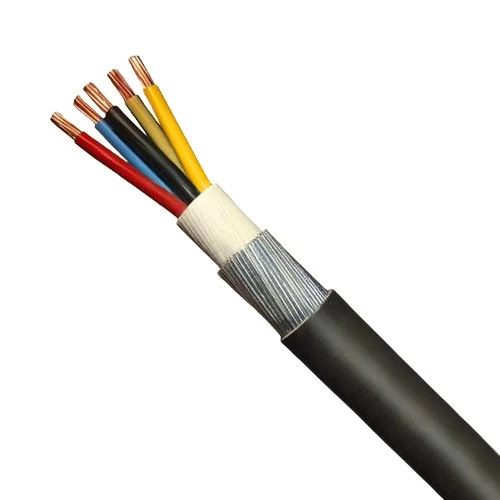

Armoured Stranded Copper Electric Cable (CU/XLPE/SWA/PVC) 4x25+16 sq mm, 0.6/1kV Low Voltage, XLPE insulation withstands high temperatures Heat, moisture and chemical resistance, Produced by BAHRA Cables.
Product description
Armored stranded copper power cable (CU/XLPE/SWA/PVC), Produced by BAHRA Cables Company according to the International Electrotechnical Commission standard (IEC 60502-1). It is armed with galvanized steel wires (SWA) to give it mechanical strength and protect it from external pressures that fall on the cable. Insulated with XLPE (cross-linked polyethylene), which offers an exceptional combination of properties that make it the ideal choice for a wide range of power and energy transmission applications due to its excellent electrical, thermal, and mechanical properties, where it is characterized by its ability to withstand high temperatures up to 90°C for extended periods without compromising performance. It also offers excellent resistance to moisture, corrosion, and chemicals, ensuring long-term safety of use. Additionally, sheathed with PVC (polyvinyl chloride) material, which provides extra protection for the cable against shocks, abrasion, and corrosion, and prevents harmful UV rays from damaging the cable. This makes it suitable for both indoor and outdoor applications where there is a risk of mechanical damage. Available in different shapes, sizes, and conductor ratings to meet diverse application requirements.
- Conductor: Stranded Copper
- Insulation Material: XLPE (Cross-Linked Polyethylene)
- Armouring: Galvanized Steel Wires (SWA)
- Outer Sheath: PVC
- Voltage: 0.6/1kV
- Number of Cores: 4.5 (4 Core + Neutral Line)
- Conductor Size (Cross-Sectional Area): ( 4cx25 mm2 ) + 16mm2
- Number of Phase Wires: 7
- Number of Neutral Wires: 7
- Nominal Insulation Thickness of Phase: 0.9 mm
- Nominal Insulation Thickness of Neutral: 0.7 mm
- Nominal Steel Wire Diameter: 1.6 mm
- Nominal Sheath Thickness: 1.8 mm
- Approx Overall Diameter: 27.6 mm
- Weight: 1947 kg/km
- Standard Length: 1000 meters
- Phase Core Colors: (Red, Yellow, Blue, Black, Green/Yellow)
- Standard: IEC 60502-1
