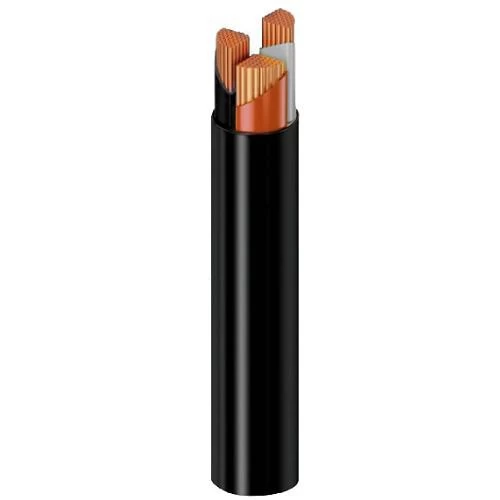

XLPE Insulated Stranded Copper Alfanar Cable, 120mm 3 Core, 600/1000V

Product description

Three core stranded copper cable (CU/XLPE/PVC), Produced by Alfanar Company, Insulated with XLPE (cross-linked polyethylene), which offers an exceptional combination of properties that make it the ideal choice for a wide range of power and energy transmission applications due to its excellent electrical, thermal, and mechanical properties, where it is characterized by its ability to withstand high temperatures up to 90°C for extended periods without compromising performance. It also offers excellent resistance to moisture, corrosion, and chemicals, ensuring long-term safety of use. Additionally, sheathed in PVC (polyvinyl chloride) material, which provides extra protection for the cable against shocks, abrasion, corrosion, and prevents harmful UV rays from damaging the cable. This makes it suitable for both indoor and outdoor applications. Available in different shapes, sizes and conductor ratings to meet diverse application requirements.

• Conductor Type: Copper
• Insulation Material: XLPE (Cross-Linked Polyethylene)
• Outer Jacket: PVC (Polyvinyl Chloride)
• Voltage: 600/1000 volts
• Conductor Size (Cross-Sectional Area): 120 mm2
• Conductor Shape: Sector Shaped (sm)
• Number of Cores: 3
• Max DC Conductor Resistance at 20°C: 0.1530 ohm/km
• Max AC Conductor Resistance at 90°C: 0.1976 ohm/km
• Current Rating Laid in Ground: 286 Ampere
• Current Rating Laid in Ducts: 223 Ampere
• Current Rating Laid in Free Air: 317 Ampere
• Approx Overall Diameter: 33.2 mm
• Weight: 3710 kg/km
• Phase Core Colors: (Brown, Black, Grey)
• Standard: IEC 60502-1
