6mm XLPE/PVC Copper Cable Single Core Stranded 600/1000V | Riyadh Cables

Product description

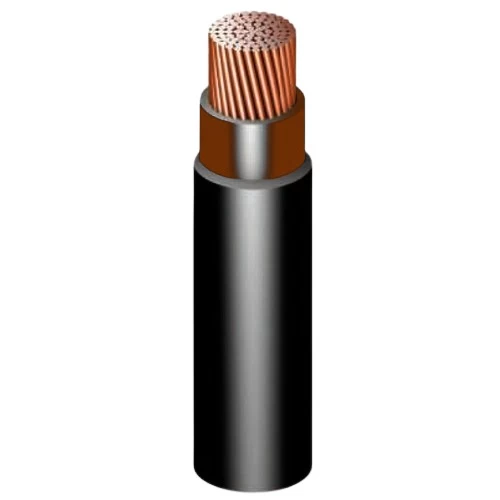

Single core stranded copper electrical cable (CU/XLPE/PVC), Produced by Riyadh Cables Company. According to IEC 60502-1(International Electrotechnical Commission) standard. Insulated with XLPE (cross-linked polyethylene) which provides a unique combination of strength, flexibility and reliability making them suitable for a diverse range of applications. It can withstand high temperatures up to 90°C for extended periods without compromising performance. The cable also withstands harsh environmental conditions, including moisture, corrosion and chemicals, making it ideal for outdoor use. Chloride-free, making it environmentally friendly. It is also jacketed with a high-quality PVC (polyvinyl chloride) outer sheath that provides additional protection against corrosion and mechanical damage. XLPE cable is commonly used extensively in power transmission and distribution systems in homes, buildings, offices and industrial applications. Available in different shapes, sizes and conductor ratings to meet diverse application requirements.

• Insulation Material: XLPE (Cross-Linked Polyethylene)
• Outer jacket : PVC
• Voltage : 600/1000 volts
• Wire Type: Round Stranded
• Number of Cores: Single Core
• Size (cross-sectional area) : 6 mm2
• Number of wires : 7
• Approx conductor diameter : 3.12 mm
• Thickness of  first insulation layer : 0.7 mm
• Thickness of outer jacket layer : 1.4 mm
• Approx overall diameter : 8 mm
• Weight : 100 kg/km
• Length : 1000 meters
• Phase Core Color: Brown
• Conformity According to International Standard: IEC 60502-1
