Double Door Zinc Plated Steel Enclosure, Three Points Lock, Dimensions 16000x1200 mm, Depth 300 mm, Thickness 1.5 mm | Al Fanar
(341 Product Views)

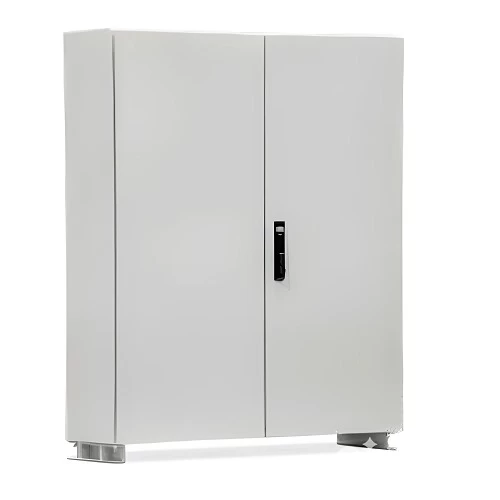

Double Door Zinc Plated Steel Enclosure, Three Points Lock, dimensions 1600 x 1200 mm, depth 300 mm, thickness 1.5 mm, from Al-Fanar Factory, code 47-SBY161230D, available in a variety of sizes to suit all industrial and commercial requirements.
Product description
Metal Electrical Enclosure manufactured by Al Fanar Company, made from high-quality electro-galvanized (EG) steel sheets to ensure durability and longevity. It is coated with a weather-resistant insulating layer, gasket on door ensures better sealing, grounding bolts are provided on both the enclosure and the door, features easily removable hinges, ideal for changing the door opening direction, along with metal keys and a robust locking mechanism, used for the protection and storage of electrical systems, suitable for industrial and commercial applications that require high security, available in a variety of sizes, offering the highest quality at the best prices.
- Height: 1600 mm
- Width: 1200 mm
- Depth: 300 mm
- Enclosure thickness: 1.5 mm
- Mounting plate thickness: 2 mm
- Number of cable plates Bottom: 2
- Number of doors: Double door
- Protection rating: IP66
- Type: SBX
- Lock type: 3 Points Lock Handle
- Code: 47-SBY161230D
- Manufactured according to: IEC 60529/62208
