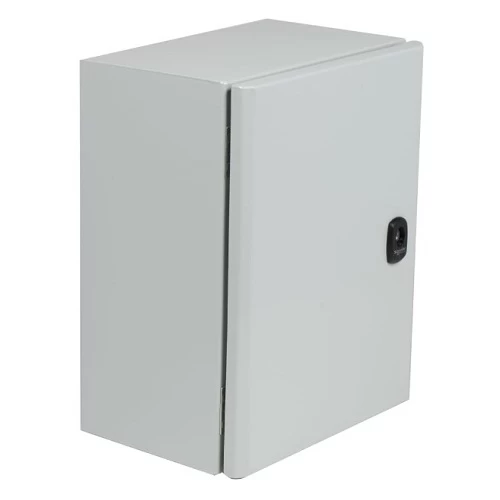

Single Door Electrical Enclosure, Galvanized Steel, Height 700 mm, Width 500 mm, Depth 200 mm | Al Fanar

Product description

Metal Electrical Enclosure manufactured by Al Fanar Company, made from high-quality electro-galvanized (EG) steel sheets to ensure durability and longevity. It is coated with a weather-resistant insulating layer, gasket on door ensures better sealing, grounding bolts are provided on both the enclosure and the door, features easily removable hinges, ideal for changing the door opening direction, along with metal keys and a robust locking mechanism, used for the protection and storage of electrical systems, suitable for industrial and commercial applications that require high security, available in a variety of sizes, offering the highest quality at the best prices.

• Height: 700 mm
• Width: 500 mm
• Depth: 200 mm
• Enclosure Thickness: 1.2 mm
• Mounting Plate Thickness: 2 mm
• Number of Gland Plates: 1
• Number of Doors: Single Door
• Protection Rating: IP66
• Type: SB
• Number of Locks: 1 or 2 (Cam Lock)
• Code: 47-SB705020D
• Manufactured according to: IEC 60529/62208
