Angular pattern Glass lift, 1250 KG load, 1.5 m/s speed,16 persons, glass design, Yellow metal tone
(148 Product Views)
Angular pattern Glass lift, 1250 KG load, 1.5 m/s speed,16 persons, glass design, Yellow metal tone, The lift is equipped with 6+6 mm laminated safety glass (3PCS), providing a wide-angle panoramic view.
Product description

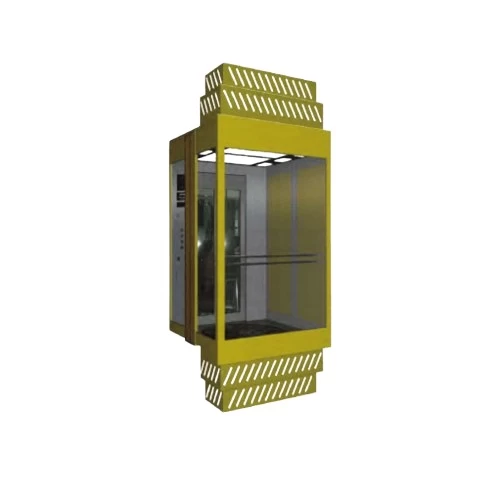

Square panoramic elevator featuring a bold matte yellow exterior that combines elegance with full visibility. The lift is equipped with 6+6 mm laminated safety glass (3PCS), providing a wide-angle panoramic view ideal for hotels, malls, and public spaces. The enamel-coated ceiling integrates acrylic lighting, delivering a sleek and contemporary visual impact. Interior walls are crafted from brushed stainless steel, and a double tube handrail adds both comfort and safety. Available in a variety of finishes and custom colors upon request.
- Car cover material: Baked enamel steel with lighting decoration
- Observation wall: 6+6 laminated safety glass (3PCS)
- Ceiling material: Baked enamel steel with acrylic lighting
- Interior wall: Brushed stainless steel
- Handrail material: Double tube stainless steel
- Floor material: PVC
- Color: Matte yellow
- Load capacity: 1250 KG
- Number of passengers: 16 persons
- Speed: 1.5 m/s
- Car dimensions: 1900 × 1500 mm
- Door opening dimensions: 1100 × 2100 mm
- Shaft dimensions: 2900 × 2000 mm
- Pit depth: 1700 mm
- Top floor height: 4700 mm
- Power: 12.7 kW
- Reaction force R1: 32200 N
- Reaction force R2: 46800 N
- Load force P1: 106000 N
- Load force P2: 81000 N
- Brand: FUJI
- Design code: JG-G08
- Model: TGJW1250/1.5
