Passenger Elevator with Engine Area, Stainless and Etched Mirror Walls, Flat Stainless Handrail, PVC Floor, 8 Persons, 630 KG Load, 1.75 m/s Speed
(147 Product Views)
Passenger Elevator with Engine Area, Stainless and Etched Mirror Walls, Flat Stainless Handrail, PVC Floor, 8 Persons, 630 KG Load, 1.75 m/s Speed, characterized by handrails provides comfortable and safe support for passengers.
Product description

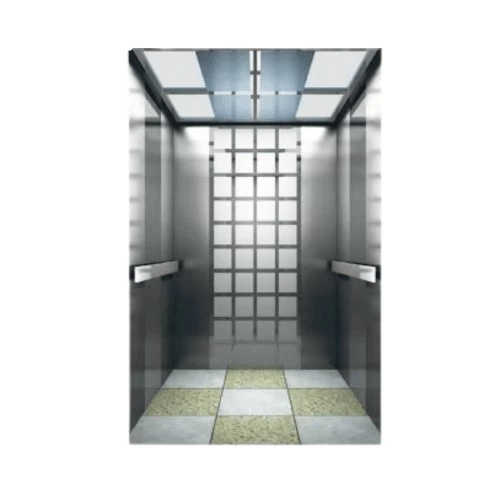

Passenger elevator with a small machine room, designed with a modern and minimal look using metallic and reflective finishes. The ceiling features a hairline stainless steel frame with an acrylic light-emitting panel that provides clear and even lighting. The cabin walls are made of etched mirrors and hairline stainless surfaces, offering a clean and elegant appearance. A flat stainless steel handrail adds safety and comfort for passengers, and the PVC flooring is easy to clean and durable for regular use. The elevator is equipped with full safety features including door sensors, alarm system, emergency lighting, and automatic brake system. Ideal for office buildings, residential towers, or commercial spaces seeking a functional and sleek elevator.
- Ceiling material: Hairline stainless steel with acrylic light-emitting panel
- Wall material: Etched mirror with hairline finish
- Handrail: Flat stainless steel
- Floor material: PVC
- Color: Silver
- Load capacity: 630 KG
- Number of passengers: 8 persons
- Speed: 1.75 m/s
- Car dimensions: 1400 × 1100 mm
- Door opening dimensions: 800 × 2100 mm
- Shaft dimensions: 2000 × 1700 mm
- Machine room dimensions: 2000 × 1700 mm
- Pit depth: 1600 mm
- Top floor height: 4700 mm
- Motor power: 9.4 kW
- Reaction force R1: 35200 N
- Reaction force R2: 21800 N
- Reaction force R3: 4300 N
- Load force P1: 58000 N
- Load force P2: 45600 N
- Brand: FUJI
- Design code: JG-K09
- Model: TKJ630/1.75
