Flat Pipe Flange Size 22 inch, Thickness 50 mm, Union Pipes Factory
(203 Product Views)

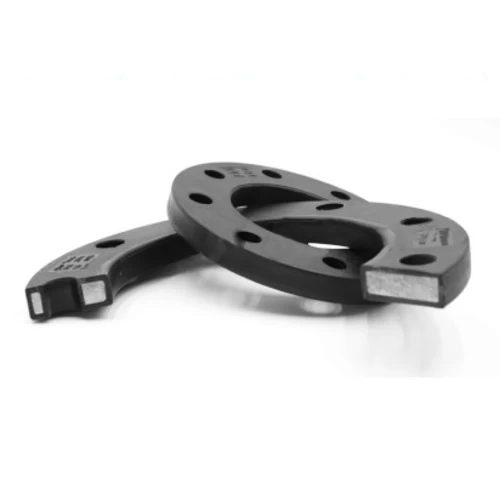

Flat pipe flange, 22-inch, 50 mm thickness, black in color, manufactured by Union Pipes Factory. It features easy installation and durability in various environments. Available in a variety of sizes to meet all needs.
-
About Product
Product description
Flange produced by Union Pipe Factory, made of high-quality materials, characterized by strength, durability, resistance to rust and corrosion, ease of installation and the ability to withstand high pressure, which makes it suitable for wide use in connecting hot and cold water pipes, as well as in sewage systems, available in a variety of sizes and at the best prices.
- Size: 22 inches
- Nominal Diameter (DN): 560 mm
- Outer Diameter (D): 760 mm
- Spacing between holes (K): 692 mm
- Ring Width (B): 590 mm
- Thickness (h): 50 mm
- Number of Holes (n): 20
- Hole Diameter (d): 35 mm
- Weight: 42.00 kg
- Class: 150
- According to Standard: ASME B16.5
