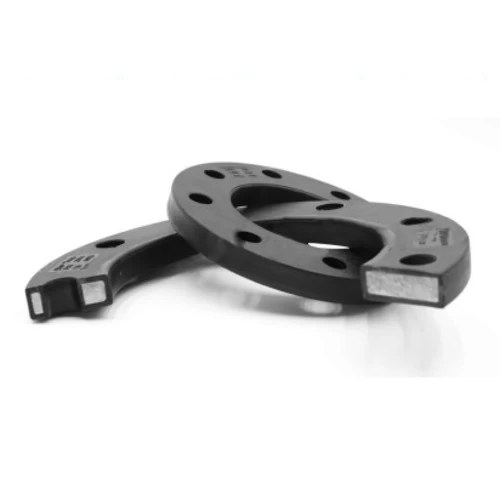

Flat Pipe Flange Size 5 inch, Thickness 24 mm, Union Pipes Company
(169 Product Views)
Flat Pipe Flange Size 5 inch, Thickness 24 mm, manufactured by Union Pipes Company, widely used for connecting sewage pipes.
Product description
Flange produced by Union Pipe Factory, made of high-quality materials, characterized by strength, durability, resistance to rust and corrosion, ease of installation and the ability to withstand high pressure, which makes it suitable for wide use in connecting hot and cold water pipes, as well as in sewage systems, available in a variety of sizes and at the best prices.
- Size : 5 inch
- Nominal diameter (dn): 125 mm
- Outer diameter (D): 260mm
- Spacing between holes (K): 216 mm
- Ring width (B): 140 mm
- Thickness (h): 24 mm
- Number of holes (n): 8
- Hole diameter (d): 23 mm
- Weight: 3.74 kg
- Class: 150
- According to standard: ASME B16.5
