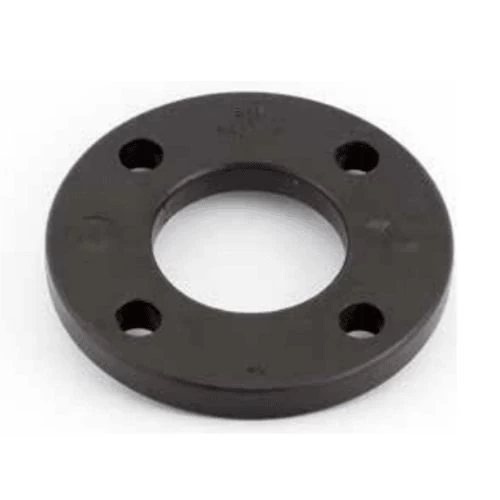

Flat PP Coated Steel Flange, 315 mm Size, Pressure 16 Bar, Black Color | Union Pipes Factory

Product description

PP Coated Steel Flange (Polypropylene) produced by Union Pipe Factory, made of high quality materials. It offers high chemical resistance and excellent corrosion resistance, making it ideal for harsh environments. The flange is also highly durable and strong, allowing to withstand ground pressure and heavy operation without losing performance. it also provides excellent UV resistance, making it suitable for use in different environmental conditions without degrading. It is widely used in hot and cold water supply under high pressure, as well as in sewage systems. Available in a variety of sizes at the best prices.

• Size: 315 mm
• Flange size: 300 mm (12 inch)
• Pitch Circle Diameter (P): 410 mm
• Inner Diameter (I): 345 mm
• Outer Diameter (D): 460 mm
• Thickness (T): 22 mm
• Number of holes × Hole diameter: 12 × 26 mm
• Bolt size: M24
• Pressure: 16 bar
• Standard: BS EN 1092
