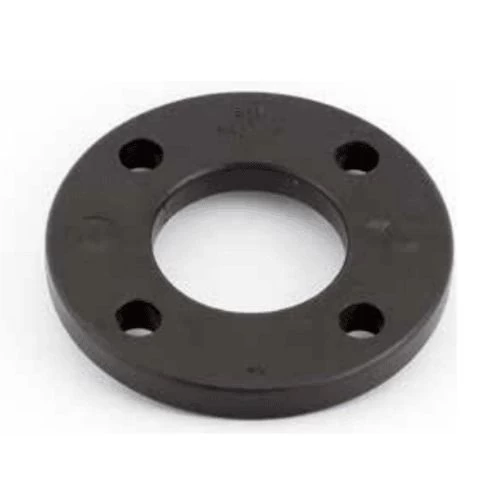

Flat PP Coated Steel Flange, 63 mm Size, Thickness 18 mm, Pressure 16 Bar, Black Color | UPI Factory
(62 Product Views)
Flat pp coated steel flange, 63 mm size, thickness 18 mm, pressure 16 bar, black color, from upi factory, offers high chemical resistance, making it ideal for systems operating under high pressure, whether in hot or cold water.
Product description
PP Coated Steel Flange (Polypropylene) produced by Union Pipe Factory, made of high quality materials. It offers high chemical resistance and excellent corrosion resistance, making it ideal for harsh environments. The flange is also highly durable and strong, allowing to withstand ground pressure and heavy operation without losing performance. it also provides excellent UV resistance, making it suitable for use in different environmental conditions without degrading. It is widely used in hot and cold water supply under high pressure, as well as in sewage systems. Available in a variety of sizes at the best prices.
- Size: 63 mm
- Flange size: 50 mm (2 inch)
- Pitch Circle Diameter (P): 125 mm
- Inner Diameter (I): 74 mm
- Outer Diameter (D): 165 mm
- Thickness (T): 18 mm
- Number of holes × Hole diameter: 4 × 18 mm
- Bolt size: M16
- Pressure: 16 bar
- Standard: BS EN 1092
