Al-Rajhi PE 63 Pressure 6 Bar Outside Diameter 500 mm Thickness 28.4 mm Color Black
(529 Product Views)

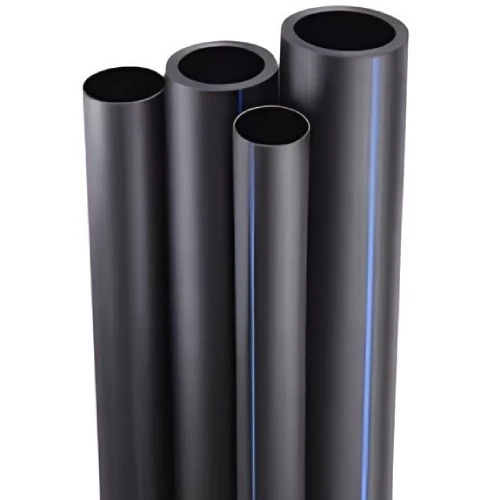

HDPE Pipes, Al-Rajhi brand, PE63, Pressure 6 Bar, Outside diameter 500 mm, Thickness 28.4 mm, Color Black, made of polyethylene known for its ability to withstand harsh environments and exposure to chemicals without corrosion or leakage. It is used in water supply, and it is characterized by its easy installation. It also has many properties such as high pressure tolerance, resistance to combustion and chemical reactions, it does not conduct electricity, and it has a high degree of flexibility, which makes it unaffected by soil movement.
Product description
HDPE Pipes, Al-Rajhi brand, made of polyethylene known for its ability to withstand harsh environments and exposure to chemicals without corrosion and leakage prevention due to excellent fusion welding. The pipes are also characterized by high pressure tolerance, resistance to combustion and chemical reactions, do not conduct electricity, and have a high degree of flexibility, which makes them not affected by soil movement and is easy to install and it is used for water supply.
- Outside diameter: 500 mm
- Pressure: 6 Bar
- Length: Straight 12 meters. Other lengths are available on customer request
- Thickness: 28.4 mm
- Weight: 42 kg / meter
- Colour: Black
- Material: PE63
- Standard dimentions ratio (SDR): 17.6
- Pipe series (s): 8.3
