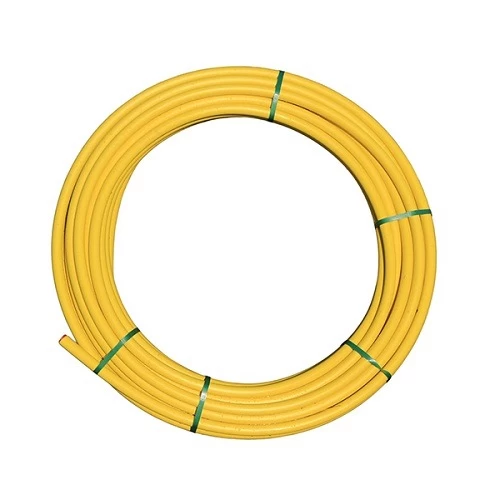

HDPE Coil Pipe PN 4.8 Bar [PE 80] Outside Diameter 40 mm Thickness 2.3 mm Color Yellow | Almona Factory
(615 Product Views)
HDPE pipe coils, Light in weight, provides safety and comfort, and can withstand high pressure and harsh climates, material grade PE80, pressure 4.8 bar (SDR 17.6), outside diameter 40 mm, produced by Al-Mona factory.
Product description
HDPE pipe coils for gas supply networks, produced by Al-Mona factory according with ISO4437 standard. Made of high-density polyethylene, which is characterized by strength, durability, can withstand high temperatures and pressure, and resists corrosion. Available in yellow color in a variety of sizes with highest quality and best prices.
- Outside diameter: 40 mm
- Standard dimentions ratio: SDR 17.6
- Material grade: PE 80
- Pressure: 4.8 bar
- Thickness: 2.3 mm
- Material Weight : 0.36 kg/m
- Minimum Required Strength (MRS): 10 MPa
- Design stress (σs): 5 MPa
- Design safety factor: C=2
- Color: yellow
- Length: Coils (100 metres, 200 metres, 300 meters up to 1500 metres) from size (16 mm to 32 mm)
- Length 2: 100 meter coils from size (40 mm to 160 mm)
