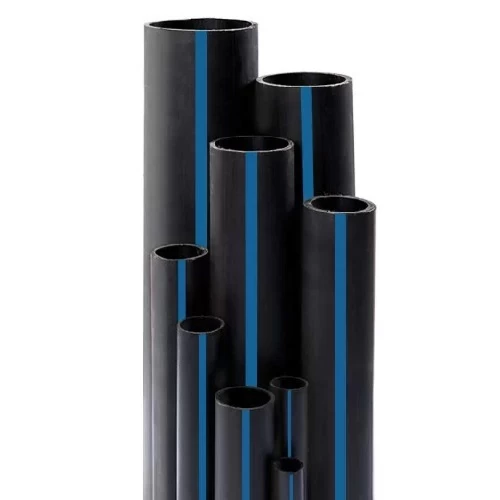

![HDPE Pipe Nominal Pressure 16 Bar [PE 100] Outside Diameter 560 mm Thickness 65 mm Black Color | Union Pipes Industries](https://youmats-media.s3.me-central-1.amazonaws.com/267436/conversions/WhatsApp-Image-2024-11-12-at-3.24.52-PM-size_500_500.webp "HDPE Pipe Nominal Pressure 16 Bar [PE 100] Outside Diameter 560 mm Thickness 65 mm Black Color | Union Pipes Industries")
HDPE Pipe Nominal Pressure 16 Bar [PE 100] Outside Diameter 560 mm Thickness 65 mm Black Color | Union Pipes Industries
(9 Product Views)
HDPE pipe nominal pressure 16 bar [PE 100] outside diameter 560 mm thickness 56 mm black color, produced by union pipes industries, Light weight, easy to transport and install compared to traditional pipes, and has anti-corrosion and anti-rust properties that ensure a long service life.
Product description
HDPE (High-density polyethylene) pipes, produced by Union Pipe Factory, it has many advantages, as it is durable and strong and can withstand ground pressures and strong operation. Light weight, easy to transport and install compared to traditional pipes, and has anti-corrosion and anti-rust properties that ensure a long service life. It also provides high resistance to chemicals and ultraviolet rays, making it suitable for use in underground sewage systems, natural gas and oil systems, and refrigeration and air conditioning systems. Available in black in a variety of sizes with the highest quality and the best prices.
- Size: 560 mm
- Outside diameter: min 560 mm, max 565 mm
- Maximum Out of Roundness: 19.6 mm
- Thickness: min 50.8 mm, max 56 mm
- Inside diameter: min 448 mm, max 463.5 mm
- Pressure: 16 bar
- Standard aspect ratio: SDR 11
- Material: PE 100
- Color: Black
- According to standards: ISO 4427
