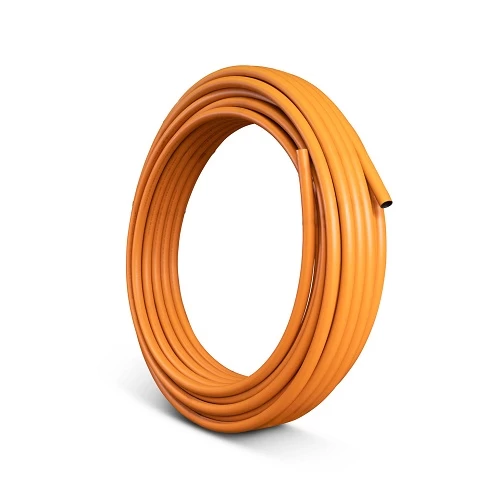

HDPE Plastic Coil Pipe PN 6 Bar [PE 100] OD 140 mm Thickness 8 mm Color Orange | Almona Factory
(817 Product Views)
HDPE pipe coils, It can withstand harsh climates, whether in an underground location or in the presence of chemicals, and is easy to transport and install, material grade PE100, pressure 6 bar (SDR 17.6), outside diameter 140 mm, produced by Al-Mona factory.
Product description
HDPE pipe coils for gas supply networks, produced by Al-Mona factory according with ISO4437 standard. Made of high-density polyethylene, which is characterized by strength, durability, can withstand high temperatures and pressure, and resists corrosion. Available in orange color in a variety of sizes with highest quality and best prices.
- Outside diameter: 140 mm
- Standard dimentions ratio: SDR 17.6
- Material grade: PE 100
- Pressure: 6 bar
- Thickness: 8 mm
- Material Weight: 3.36 kg/m
- Minimum Required Strength (MRS): 10 MPa
- Design stress (σs): 5 MPa
- Design safety factor: C=2
- Color: orange
- Length: Coils (100 metres, 200 metres, 300 meters up to 1500 metres) from size (16 mm to 32 mm)
- Length 2: 100 meter coils from size (40 mm to 160 mm)
