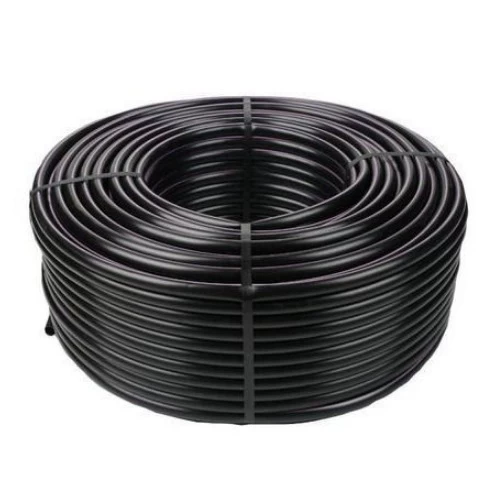

HDPE Plastic Coil Pipe PN 6 Bar [PE 80] OD 125 mm Thickness 7.1 mm Color Black | Alwasail
(165 Product Views)
HDPE Plastic coil Pipes, It is resistant to combustion and chemical reactions and does not conduct electricity. It has a high degree of flexibility, which makes it not affected by soil movement, produced by Al-Wasail Industrial Company, material grade PE80, pressure 6 bar, outside diameter 125 mm.
Product description
HDPE Plastic coil Pipes, Al-Wasail Industrial Company, according to the DIN 8074/8075 standard, Made of polyethylene known for its ability to withstand harsh environments and exposure to chemicals without corrosion or leakage, the pipes are characterized by high pressure tolerance, resistance to combustion and chemical reactions and do not deliver electricity with high elasticity making them not affected by soil movement, as they are easy to install and used in water supply.
- Outside diameter: 125 mm
- Standard dimentions ratio: SDR 17.6
- Pipe Series (S): 8.3
- Material grade: PE 80
- Pressure: 6 bar
- Inner diameter: 110.8 mm
- Thickness: 7.1 mm
- Minimum Required Strength (MRS): 8 MPa
- Weight: 2.660 kg/m
- Design safety factor: C=1,6
- Design safety factor: σs = 5 MPa
- Color: Black
- Length: 100 meter coils from size (12 mm to 125 mm)
