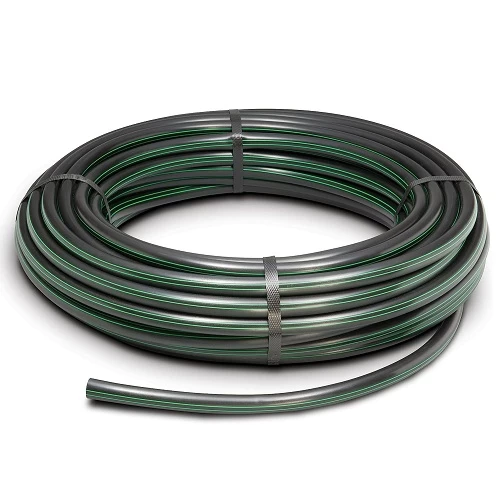

HDPE Plastic Coil Pipe Pressure 16 Bar [PE 100] Outside Diameter 40 mm Thickness 4.5 mm Black Color | Al Manar Company
(23 Product Views)
HDPE plastic pipes, pressure 16 bar, [PE 100], size 40 mm, thickness 4.5 mm, black color, produced by Al-Manar Company, resistant to ultraviolet rays, which makes it suitable for use in underground sewage systems, natural gas and oil systems.
Product description
HDPE (High-density polyethylene) produced by Al Manar Factory , it has many advantages, as it is durable and strong and can withstand ground pressures and strong operation. Light weight, easy to transport and install compared to traditional pipes, and has anti-corrosion and anti-rust properties that ensure a long service life. It also provides high resistance to chemicals and ultraviolet rays, making it suitable for use in underground sewage systems, natural gas and oil systems, and refrigeration and air conditioning systems. Available in black in a variety of sizes with the highest quality and the best prices.
- Size (OD) : 40 mm
- Thickness : 4.5 mm
- PN : 16 bar
- Weight : 0.509 kg/m
- Color : Black
- Standard dimensions ratio (SDR) : 9
- Standards : ISO 2-4427, DIN 8074, EN 2-12201
- Material : PE 100
- Pipe series (S) : 4
- Standard length: 6.9, 12 meters (other lengths are available upon request)
