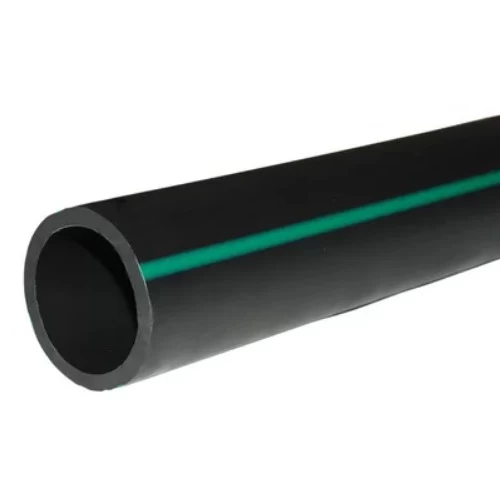

HDPE Polyethylene Pipe Nominal Pressure 12.5 Bar [PE 80] OD 250 mm SDR 11 Color Black with Green Stripes | Almona Factory
(621 Product Views)
HDPE Polyethylene Pipe, Available in black with green stripes, it is used in several uses, such as supply and water transportation networks. It is characterized by strength and durability, material grade PE80, pressure 12.5 bar, outside diameter 250 mm, produced by Al-Mona factory.
Product description
HDPE Polyethylene Pipe for water transportation networks, produced by Al Mona factory according to DIN 8074/8075. HDPE pipes made of (high-density polyethylene) are the perfect choice for efficient liquid transportation due to their unique advantages that guarantee durability and excellent performance. They can withstand high water pressure, making them ideal for water networks that are subjected to high pressures, also have a 50 years free maintenance lifetime. In addition, they provide superior protection against external factors, as HDPE pipes can withstand exposure to UV for long periods. They are also resistant earthquakes due to high pipe and welded joint flexibility. In addition to their resistance to chemical corrosion, they can withstand various chemicals with a pH range of 2 to 12. Available in a variety of sizes with highest quality and the best prices.
- Outside diameter: 250 mm
- Standard dimentions ratio: SDR 11
- Pipe Series (S): 5
- Material grade: PE 80
- Pressure: 12.5 bar
- Thickness: 22.7 mm
- Minimum Required Strength (MRS): 8 MPa
- Weight: 16.2 kg/m
- Design safety factor: C=1,25
- Color: Black with green stripes
- Length: Coils (100 metres, 200 metres, 300 meters up to 1500 metres) from size (16 mm to 32 mm)
- Length 2: 100 meter coils from size (40 mm to 160 mm)
