![HDPE Polyethylene Pipe PN 3.9 Bar [PE 63] Outside Diameter 250 mm SDR 21 Color Black | Almona Factory](https://youmats-media.s3.me-central-1.amazonaws.com/167573/conversions/HDPE-Black-size_500_500.webp "HDPE Polyethylene Pipe PN 3.9 Bar [PE 63] Outside Diameter 250 mm SDR 21 Color Black | Almona Factory")

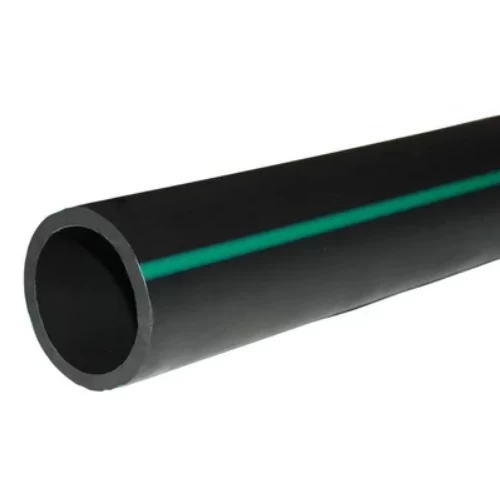

HDPE Polyethylene Pipe PN 3.9 Bar [PE 63] Outside Diameter 250 mm SDR 21 Color Black | Almona Factory
(317 Product Views)
HDPE polyethylene pipe for irrigation systems, pressure 3.9 bar, black color (SDR 21), outside diameter 250 mm, according to DIN 8074/8075 standard, produced by Al Mona factory. Available in a variety of sizes with highest quality and the best prices, material grade PE 63.
Product description
HDPE pipes for irrigation systems, produced by Al-Mona Company. HDPE pipes made of (high-density polyethylene) are the perfect choice for efficient liquid transportation due to their unique advantages that guarantee durability and excellent performance. They can withstand high water pressure, making them ideal for water networks that are subjected to high pressures, also have a 50 years free maintenance lifetime. In addition, they provide superior protection against external factors.
- Outside diameter : 250 mm
- Thickness : 11.9 mm
- Weight : 8.93 kg/m
- Standard dimensional ratio : SDR 21
- Pressure : 3.9 bar
- Pipe Series (S) : 10
- Material grade : PE 63
- Color : Black
- Minimum Required Strength (MRS) : 6.3 MPa
- Design stress (σs) : 3.94 MPa
- Design safety factor : C=1.6
- Length : 12 meters (available in different lengths upon request)
- Manufactured according to : DIN 8074/8075
