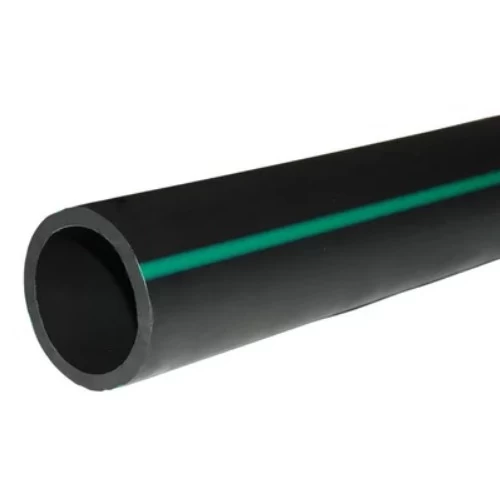

![HDPE Polyethylene Pipe PN 4 Bar [PE 80] Outside Diameter 250 mm SDR 41 Color Black | Almona Factory](https://youmats-media.s3.me-central-1.amazonaws.com/165215/conversions/HDPE-Black-size_500_500.webp "HDPE Polyethylene Pipe PN 4 Bar [PE 80] Outside Diameter 250 mm SDR 41 Color Black | Almona Factory")
HDPE Polyethylene Pipe PN 4 Bar [PE 80] Outside Diameter 250 mm SDR 41 Color Black | Almona Factory
(367 Product Views)
HDPE Polyethylene pipe for irrigation systems, (SDR 41) material grade PE 80, pressure 4 bar, outside diameter 250 mm, It has high corrosion resistance, meaning it withstands harsh environments and remains strong and effective for long periods of time, according to DIN 8074/8075 standard, black color produced by Al Mona factory.
Product description
HDPE pipe for irrigation systems, produced by Al-Mona Company. HDPE pipes made of (high-density polyethylene) are the perfect choice for efficient liquid transportation due to their unique advantages that guarantee durability and excellent performance. They can withstand high water pressure, making them ideal for water networks that are subjected to high pressures, also have a 50 years free maintenance lifetime. In addition, they provide superior protection against external factors.
- Outside diameter : 250 mm
- Thickness : 6.2 mm
- Weight : 4.83 kg/m
- Standard dimensional ratio : SDR 41
- Pressure : 4 bar
- Pipe Series (S) : 20
- Material grade : PE 80
- Color : Black
- Minimum Required Strength (MRS) : 8 MPa
- Design stress (σs) : 6.4 MPa
- Design safety factor : C=1.25
- Length : 12 meters (available in different lengths upon request)
- Manufactured according to : DIN 8074/8075
