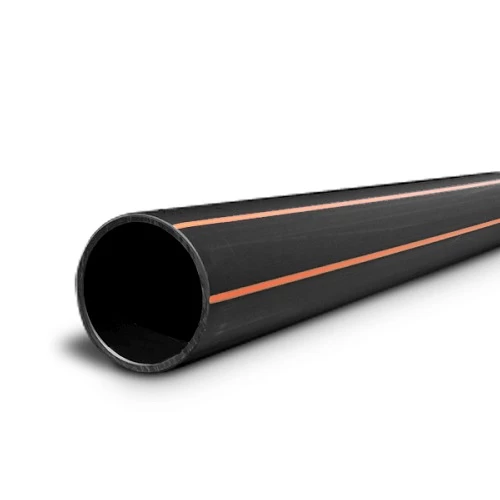

HDPE Polyethylene Pipe PN 6 Bar [PE 100] OD 450 mm Thickness 25.6 mm Color Black with Orange Stripes | Almona Factory
(606 Product Views)
HDPE pipes, It is characterized by ease and speed of installation, as the parts are assembled easily and without the need for sophisticated equipment, and are available in a variety of sizes, material grade PE100, pressure 6 bar (SDR 17.6), outer diameter 450 mm, produced by Al-Mona Factory.
Product description
HDPE polyethylene pipe for gas supply networks, produced by Al-Mona factory according with ISO4437 standard. Made of high-density polyethylene, which is characterized by strength, durability, can withstand high temperatures and pressure, and resists corrosion. Available in a variety of sizes with highest quality and best prices.
- Outside diameter: 450 mm
- Standard dimentions ratio: SDR 17.6
- Material grade: PE 100
- Pressure: 6 bar
- Thickness: 25.6 mm
- Material Weight : 34.16 kg/m
- Minimum Required Strength (MRS): 10 MPa
- Design stress (σs): 5 MPa
- Design safety factor: C=2
- Color: black with orange stripes
- Length: 12 meters (available in different lengths upon request)
