![HDPE Polyethylene Pipe Working Pressure 12.5 Bar [PE 80] Outer Diameter 250 mm SDR 11 Color Black | Almona Factory](https://youmats-media.s3.me-central-1.amazonaws.com/166154/conversions/HDPE-Black-size_500_500.webp "HDPE Polyethylene Pipe Working Pressure 12.5 Bar [PE 80] Outer Diameter 250 mm SDR 11 Color Black | Almona Factory")

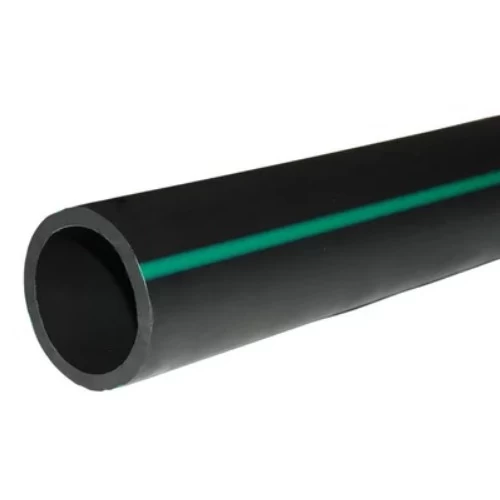

HDPE Polyethylene Pipe Working Pressure 12.5 Bar [PE 80] Outer Diameter 250 mm SDR 11 Color Black | Almona Factory
(334 Product Views)
HDPE Polyethylene pipe, they provide superior protection against external factors, as HDPE pipes can withstand exposure to UV for long periods, for irrigation systems, pressure 12.5 bar, (SDR 11) material grade PE 80, according to DIN 8074/8075 standard, outside diameter 250 mm, black color, produced by Al Mona factory.
Product description
HDPE pipes for irrigation systems, produced by Al-Mona Company. HDPE pipes made of (high-density polyethylene) are the perfect choice for efficient liquid transportation due to their unique advantages that guarantee durability and excellent performance. They can withstand high water pressure, making them ideal for water networks that are subjected to high pressures, also have a 50 years free maintenance lifetime. In addition, they provide superior protection against external factors.
- Outside diameter : 250 mm
- Thickness : 22.7 mm
- Weight : 16.2 kg/m
- Standard dimensional ratio : SDR 11
- Pressure : 12.5 bar
- Pipe Series (S) : 5
- Material grade : PE 80
- Color : Black
- Minimum Required Strength (MRS) : 8 MPa
- Design stress (σs) : 6.4 MPa
- Design safety factor : C=1.25
- Length : 12 meters (available in different lengths upon request)
- Manufactured according to : DIN 8074/8075
