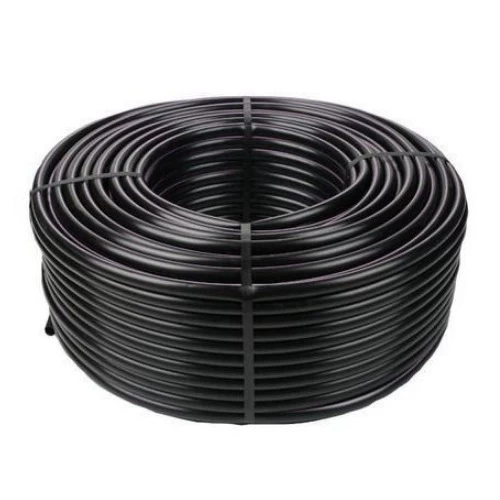

![High Density Polyethylene Coil Pipe Pressure 10 Bar [PE 100] Outer Diameter 125 mm Black Color | Alwasail](https://youmats-media.s3.me-central-1.amazonaws.com/189786/conversions/pipe-size_500_500.webp "High Density Polyethylene Coil Pipe Pressure 10 Bar [PE 100] Outer Diameter 125 mm Black Color | Alwasail")
High Density Polyethylene Coil Pipe Pressure 10 Bar [PE 100] Outer Diameter 125 mm Black Color | Alwasail
(176 Product Views)
High density polyethylene plastic coil pipes, outside diameter 125 mm, material grade PE100, black color, produced by Al-Wasail Company. available in a variety of sizes with the highest quality and best price, pressure 10 bar.
Product description
HDPE coil pipes, Al-Wasail Company, Made of polyethylene known for its ability to withstand harsh environments and exposure to chemicals without corrosion or leakage, the pipes are characterized by high pressure tolerance, resistance to combustion and chemical reactions and do not deliver electricity with high elasticity making them not affected by soil movement, as they are easy to install and used in water supply.
- Outside diameter : 125 mm
- Inside diameter : 110.2 mm
- Thickness : 7.4 mm
- Weight : 2.760 kg/m
- Standard dimentions ratio : SDR 17
- Pipe Series (S) : 8
- Material grade : PE 100
- Pressure : 10 bar
- Minimum Required Strength (MRS) : 10 MPa
- Design safety factor : C=1,25
- Design safety factor : σs = 8 MPa
- Color: Black
- Length : 100 meter coils from size (12 mm to 125 mm)
- Standard : DIN 8074/8075
