![High Density Polyethylene Coil Pipe Working Pressure 4 Bar [PE 100] Outer Diameter 110 mm Thickness 2.7 mm Black Color | Alwasail](https://youmats-media.s3.me-central-1.amazonaws.com/189030/conversions/pipe-size_500_500.webp "High Density Polyethylene Coil Pipe Working Pressure 4 Bar [PE 100] Outer Diameter 110 mm Thickness 2.7 mm Black Color | Alwasail")

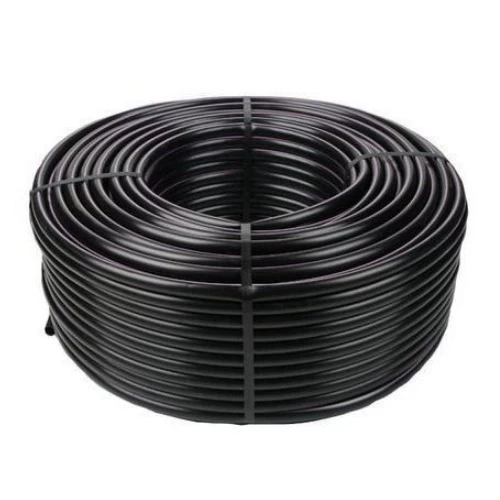

High Density Polyethylene Coil Pipe Working Pressure 4 Bar [PE 100] Outer Diameter 110 mm Thickness 2.7 mm Black Color | Alwasail
(172 Product Views)
High density polyethylene plastic coil pipes, pressure 4 bar, black color, material grade PE100, outside diameter 110 mm, produced by Al-Wasail Company. available in a variety of sizes with the highest quality and best price, SDR 41.
Product description
HDPE coil pipes, Al-Wasail Company, Made of polyethylene known for its ability to withstand harsh environments and exposure to chemicals without corrosion or leakage, the pipes are characterized by high pressure tolerance, resistance to combustion and chemical reactions and do not deliver electricity with high elasticity making them not affected by soil movement, as they are easy to install and used in water supply.
- Outside diameter : 110 mm
- Inside diameter : 104.6 mm
- Thickness : 2.7 mm
- Weight : 0.943 kg/m
- Standard dimentions ratio : SDR 41
- Pipe Series (S) : 20
- Material grade : PE 100
- Pressure : 4 bar
- Minimum Required Strength (MRS) : 10 MPa
- Design safety factor : C=1,25
- Design safety factor : σs = 8 MPa
- Color: Black
- Length : 100 meter coils from size (12 mm to 125 mm)
- Standard : DIN 8074/8075
