![High Density Polyethylene Pipe Pressure 20 Bar [PE 100] Size (OD) 560 mm Thickness 68.9 mm Black Color | Union Pipes Industries](https://youmats-media.s3.me-central-1.amazonaws.com/267265/conversions/%D8%A8%D9%84%D8%A7%D8%B3%D8%AA%D9%8A%D9%83-%D8%A8%D9%88%D9%84%D9%8A-%D8%A7%D9%8A%D8%AB%D9%8A%D9%84%D9%8A%D9%86-size_500_500.webp "High Density Polyethylene Pipe Pressure 20 Bar [PE 100] Size (OD) 560 mm Thickness 68.9 mm Black Color | Union Pipes Industries")

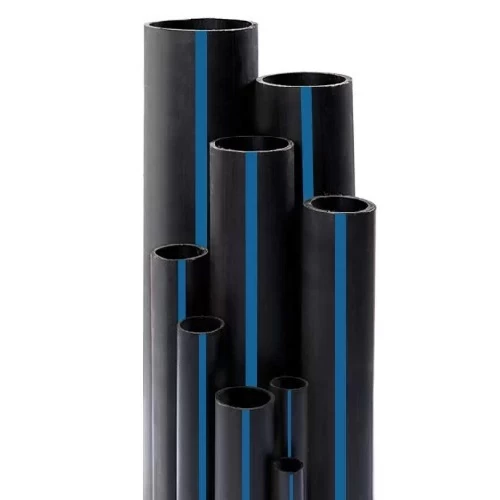

High Density Polyethylene Pipe Pressure 20 Bar [PE 100] Size (OD) 560 mm Thickness 68.9 mm Black Color | Union Pipes Industries
(48 Product Views)
High-density polyethylene plastic pipes, pressure 20 bar [PE 100], outer diameter 560 mm, thickness 68.9 mm, provides innovative and sustainable solutions for all your pipe needs, produced by Union Pipe Factory.
Product description
HDPE (High-density polyethylene) pipes, produced by Union Pipe Factory, it has many advantages, as it is durable and strong and can withstand ground pressures and strong operation. Light weight, easy to transport and install compared to traditional pipes, and has anti-corrosion and anti-rust properties that ensure a long service life. It also provides high resistance to chemicals and ultraviolet rays, making it suitable for use in underground sewage systems, natural gas and oil systems, and refrigeration and air conditioning systems. Available in black in a variety of sizes with the highest quality and the best prices.
- Size: 500 mm
- Outside diameter: minimum 500 mm, maximum 504.5 mm
- Maximum Out of Roundness: 17.5 mm
- Thickness: minimum 55.8 mm, maximum 61.5 mm
- Inner diameter: minimum 135.4 mm, maximum 141.5 mm
- Pressure: 20 bar
- Standard aspect ratio: SDR 9
- Material: PE 100
- Color: Black
- According to standards: ISO 4427
