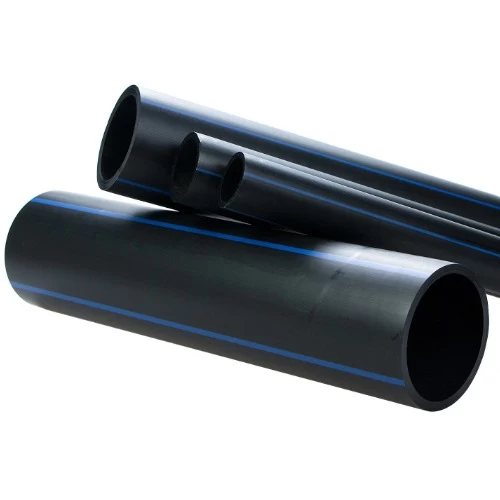

High Density Polyethylene Pipe Pressure 6.3 Bar [PE 100] Thickness 34.4 mm Black Color | Alwasail
(160 Product Views)
High density polyethylene pipes, pressure 6.3 bar, black color, produced by Al-Wasail Company. it resists chemicals and corrosion, making it ideal for use in harsh environments, material grade PE100, outside diameter 900 mm.
Product description
HDPE pipes, Al-Wasail Company, Made of polyethylene known for its ability to withstand harsh environments and exposure to chemicals without corrosion or leakage, the pipes are characterized by high pressure tolerance, resistance to combustion and chemical reactions and do not deliver electricity with high elasticity making them not affected by soil movement, as they are easy to install and used in water supply.
- Outside diameter : 900 mm
- Inside diameter : 831.2 mm
- Thickness : 34.4 mm
- Weight : 93.40 kg/m
- Standard dimentions ratio : SDR 26
- Pipe Series (S) : 12.5
- Material grade : PE 100
- Pressure : 6.3 bar
- Minimum Required Strength (MRS) : 10 MPa
- Design safety factor : C=1,25
- Design safety factor : σs = 8 MPa
- Color: Black
- Standard : DIN 8074/8075
