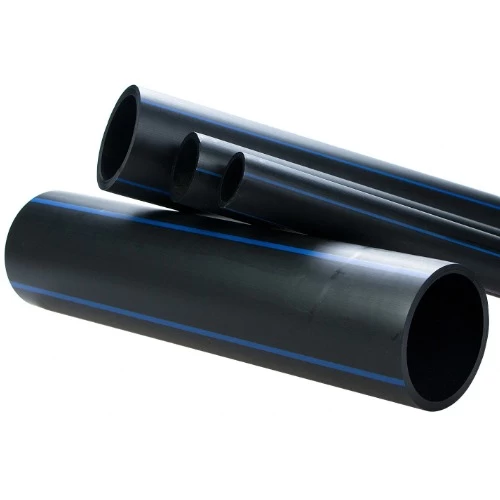

High Density Polyethylene Pipe Working Pressure 3.2 Bar [PE 80] Outer Diameter 1200 mm Thickness 36.7 mm Black Color | Alwasail
(413 Product Views)
HDPE High density polyethylene plastic pipes, material grade PE80, pressure 3.2 bar, produced by Al-Wasail Company, Available in a variety of sizes with the highest quality and best price, black color, outside diameter 1200 mm.
Product description
HDPE pipes, Al-Wasail Company, Made of polyethylene known for its ability to withstand harsh environments and exposure to chemicals without corrosion or leakage, the pipes are characterized by high pressure tolerance, resistance to combustion and chemical reactions and do not deliver electricity with high elasticity making them not affected by soil movement, as they are easy to install and used in water supply.
- Outside diameter : 1200 mm
- Inside diameter : 1126.6 mm
- Thickness : 36.7 mm
- Weight : 134.00 kg/m
- Standard dimentions ratio : SDR 33
- Pipe Series (S) : 16
- Material grade : PE 80
- Pressure : 3.2 bar
- Minimum Required Strength (MRS) : 8 MPa
- Design safety factor : C=1,6
- Design safety factor : σs = 5 MPa
- Color: Black
- Standard : DIN 8074/8075
