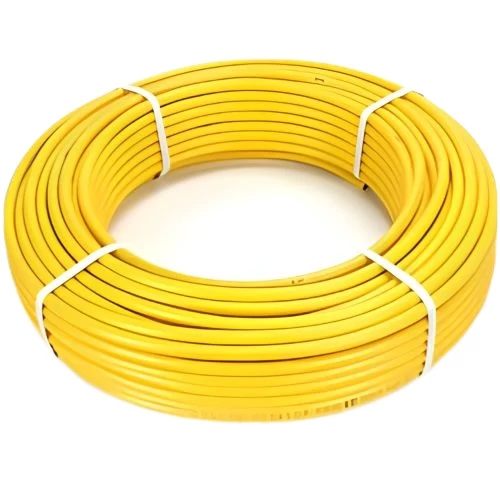

Neproplast HDPE Pipes PE 100 Pressure 12.5 Bar Outside Diameter 63 mm Thickness 4.7 mm Color Yellow
(813 Product Views)
HDPE Pipes Neproplast brand, PE100, Pressure 12.5 bar, Outside diameter 63 mm, Thickness 4.7 mm, Color Yellow, used in gas applications. It is made of high-density polyethylene. It is strong and light in weight, withstands high pressure, and has many properties such as resistance to bacteria and insects, resistance to heat and ultraviolet rays, it does not need painting, it is easy to form according to the customer’s request, the pipes can be connected securely and solidly by electric welding.
Product description
HDPE Pipes Neproplast brand , used in gas applications. It is made of high-density polyethylene. It is also characterized by light weight and strength. It is resistant to bacteria and insects. It bears high pressure. It is resistant to heat and ultraviolet rays. It does not need painting. It is easy to form according to the customer’s request. The pipes can be connected in any way Safe and durable by electric welding.
- Outside diameter: 63 mm
- Pressure: 12.5 Bar
- Length: Available in rolls of 100 metres
- Thickness: 4.7 mm
- Weight: 0.873 kg / meter
- Color: Yellow, other colors are available on request
- Material: PE100
- Standard dimentions ratio (SDR): 13.6
- Sigma : 8
- Minimum required strength (MRS) : 10
- Series (S) : 6.3
