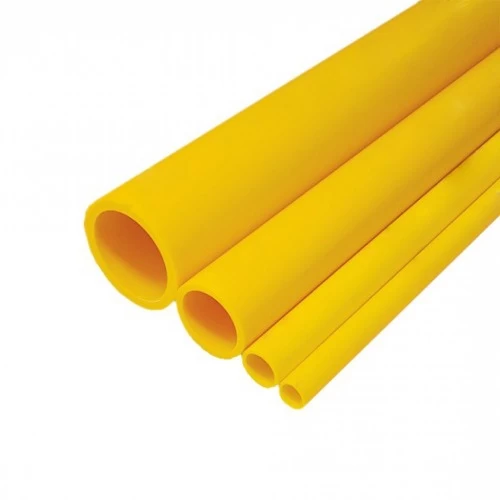

Neproplast HDPE Pipes PE 100 Pressure 16 Bar Outside Diameter 560 mm Thickness 50.8 mm Color Yellow
(969 Product Views)
HDPE Pipes Neproplast brand, PE100, Pressure 16 bar, Outside diameter 560 mm, Thickness 50.8 mm, Color Yellow, used in gas applications. It is made of high-density polyethylene. Resistant to bacteria and insects, it has many properties such as its strength and light weight, it bears high pressure, it is resistant to heat and ultraviolet rays, it does not need to be painted, it is easy to form according to the customer’s request, the pipes can be connected securely and solidly by electric welding.
Product description
HDPE Pipes Neproplast brand , used in gas applications. It is made of high-density polyethylene. It is also characterized by light weight and strength. It is resistant to bacteria and insects. It bears high pressure. It is resistant to heat and ultraviolet rays. It does not need painting. It is easy to form according to the customer’s request. The pipes can be connected in any way Safe and durable by electric welding.
- Outside diameter: 560 mm
- Pressure: 16 Bar
- Length: Straight 12 meters. Other lengths are available on customer request
- Thickness: 50.8 mm
- Weight: 80.800 kg / meter
- Color: Yellow, other colors are available on request
- Material: PE100
- Standard dimentions ratio (SDR): 11
- Sigma : 8
- Minimum required strength (MRS) : 10
- Series (S) : 5
