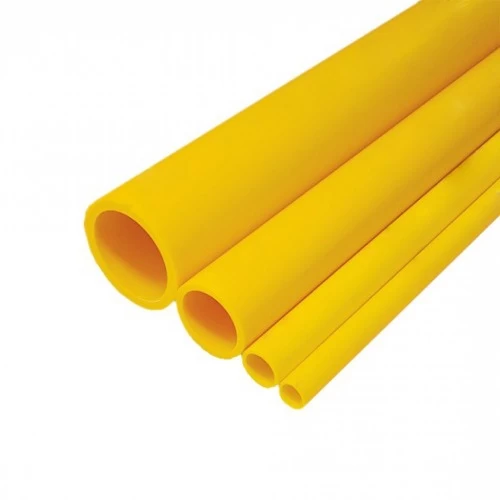

Neproplast HDPE Pipes PE 80 Nominal Pressure 10 Bar Outside Diameter 315 mm Thickness 23.2 mm Color Yellow
(1041 Product Views)
HDPE Pipes Neproplast brand, PE80, Pressure 10 bar, Outside diameter 315 mm, Thickness 23.2 mm, Color Yellow, used in gas applications. It is made of high-density polyethylene. Resistant to heat and ultraviolet rays, resistant to bacteria and insects, strong and light in weight, and bears high pressure, does not need to be painted, easy to form according to the customer’s request, the pipes can be connected securely and solidly by electric welding.
Product description
HDPE Pipes Neproplast brand , used in gas applications. It is made of high-density polyethylene. It is also characterized by light weight and strength. It is resistant to bacteria and insects. It bears high pressure. It is resistant to heat and ultraviolet rays. It does not need painting. It is easy to form according to the customer’s request. The pipes can be connected in any way Safe and durable by electric welding.
- Outside diameter: 315 mm
- Pressure: 10 Bar
- Length: Straight 12 meters. Other lengths are available on customer request
- Thickness: 23.2 mm
- Weight: 21.200 kg / meter
- Color: Yellow, other colors are available on request
- Material: PE80
- Standard dimentions ratio (SDR): 13.6
- Sigma : 6.3
- Minimum required strength (MRS) : 8
- Series (S) : 6.3
