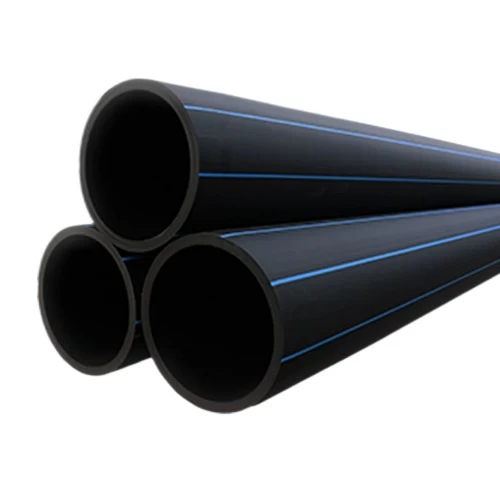

Neproplast HDPE Pipes PE 80 Nominal Pressure 10 Bar Outside Diameter 560 mm Thickness 41.2 mm Color Black
(676 Product Views)
HDPE Pipes Neproplast brand, PE80, Pressure 10 bar, Outside diameter 560 mm, Thickness 41.2 mm, Color Black, It is used in transporting potable water and agricultural water. It is made of high-density polyethylene. Among its characteristics are its resistance to heat and ultraviolet rays, resistance to bacteria and insects, light weight and strength, and withstand high pressure, it does not need paint, it is easy to form according to the customer’s request, the pipes can be connected securely and solidly by electric welding.
Product description
HDPE Pipes Neproplast brand , It is used in transporting potable water and agricultural water. It is made of high-density polyethylene. It is also characterized by light weight and strength. It is resistant to bacteria and insects. It bears high pressure. It is resistant to heat and ultraviolet rays. It does not need painting. It is easy to form according to the customer’s request. The pipes can be connected in any way Safe and durable by electric welding.
- Outside diameter: 560 mm
- Pressure: 10 Bar
- Length: Straight 12 meters. Other lengths are available on customer request
- Thickness: 41.2 mm
- Weight: 66.90 kg / meter
- Color: Black, other colors are available on request
- Material: PE80
- Standard dimentions ratio (SDR): 13.6
- Sigma : 6.3
- Minimum required strength (MRS) : 8
- Series (S) : 6.3
