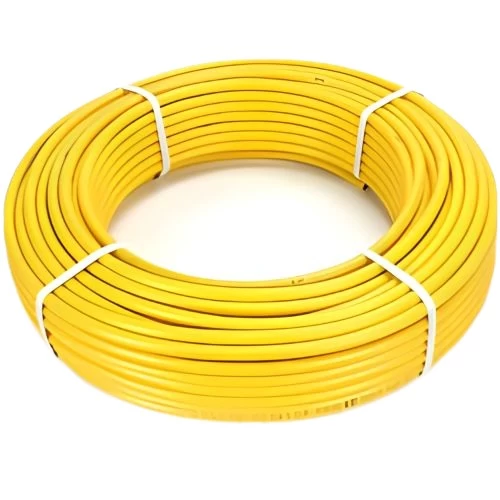

Neproplast HDPE Pipes PE 80 Nominal Pressure 12.5 Bar Outside Diameter 20 mm Thickness 1.9 mm Color Yellow
(878 Product Views)
HDPE Pipes Neproplast brand, PE80, Pressure 12.5 bar, Outside diameter 20 mm, Thickness 1.9 mm, Color Yellow, used in gas applications. It is made of high-density polyethylene. It does not need to be painted, it is resistant to bacteria and insects, it is resistant to heat and ultraviolet rays, it is light in weight and strong, and it bears high pressure, easy to form according to the customer’s request, the pipes can be connected securely and solidly by electric welding
Product description
HDPE Pipes Neproplast brand , used in gas applications. It is made of high-density polyethylene. It is also characterized by light weight and strength. It is resistant to bacteria and insects. It bears high pressure. It is resistant to heat and ultraviolet rays. It does not need painting. It is easy to form according to the customer’s request. The pipes can be connected in any way Safe and durable by electric welding.
- Outside diameter: 20 mm
- Pressure: 12.5 Bar
- Length: Available in rolls of 100, 200, 300 and up to 1500 metres
- Thickness: 1.9 mm
- Weight: 0.116 kg / meter
- Color: Yellow, other colors are available on request
- Material: PE80
- Standard dimentions ratio (SDR): 11
- Sigma : 6.3
- Minimum required strength (MRS) : 8
- Series (S) : 5
