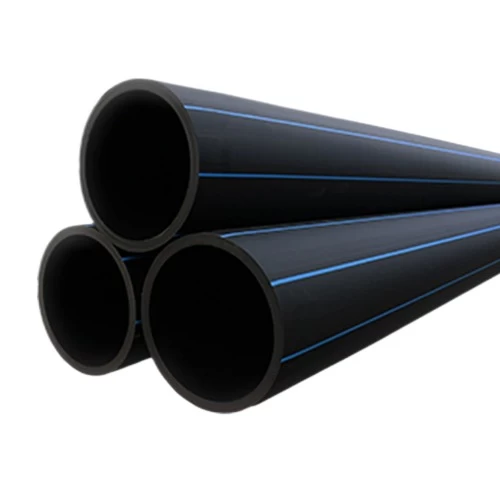

Neproplast HDPE Pipes PE 80 Nominal Pressure 16 Bar Outside Diameter 560 mm Thickness 62.5 mm Color Black
(962 Product Views)
HDPE Pipes Neproplast brand, PE80, Pressure 16 bar, Outside diameter 560 mm, Thickness 62.5 mm, Color Black, It is used in transporting potable water and agricultural water. It is made of high-density polyethylene. It bears high pressure, and is distinguished by many properties such as its strength and light weight. It is also resistant to bacteria and insects, heat and ultraviolet radiation. It does not need painting. It is easy to form according to the customer’s request. The pipes can be connected securely and solidly by electric welding.
Product description
HDPE Pipes Neproplast brand , It is used in transporting potable water and agricultural water. It is made of high-density polyethylene. It is also characterized by light weight and strength. It is resistant to bacteria and insects. It bears high pressure. It is resistant to heat and ultraviolet rays. It does not need painting. It is easy to form according to the customer’s request. The pipes can be connected in any way Safe and durable by electric welding.
- Outside diameter: 560 mm
- Pressure: 16 Bar
- Length: Straight 12 meters. Other lengths are available on customer request
- Thickness: 62.5 mm
- Weight: 97 kg / meter
- Color: Black, other colors are available on request
- Material: PE80
- Standard dimentions ratio (SDR): 9
- Sigma : 6.3
- Minimum required strength (MRS) : 8
- Series (S) : 4
